Two-year dynamics of foliage labelling in 8-year-old Pinus pinaster trees with ¹⁵N, ²⁶Mg and ⁴²Ca—simulation of Ca transport in xylem using an upscaling approach

Abstract

• Introduction

Atmospheric deposition is an important input of major nutrients into forest ecosystems. The long-term goal of this work was to apply stable isotope methodology to assess atmospheric nutrient deposition in forest systems.

• Materials and methods

A labelling experiment of foliage with stable isotopes of primary and secondary macro nutrients (¹⁵N, ²⁶Mg and ⁴²Ca injected into the stem sapwood) was carried on standing trees to monitor interactions between canopy and precipitations. ¹⁵N rapidly reached the foliage; however, Mg and Ca were not detected in foliage until more than a year after injection.

• Results and discussion

The delay in mobilization of Mg and Ca prevented us from accurately modelling deposition contributions of these two elements. Nonetheless, an upscaling approach based on published results on Ca transport in shoots xylem was used to simulate our results. These simulations of Ca transport at the tree scale were consistent with our experimental data.

• Conclusion

This consistency suggested that mechanisms of nutrient transport are the same at the different scales. Nitrogen was rapidly transported in the xylem to foliage, probably mainly by mass flow. Conversely, transport of Mg and particularly Ca was considerably delayed, probably due to successive cation exchanges along the xylem vessels.

1 Introduction

In forest ecosystems, understanding nutrient dynamics is important for overall forest management strategies and assessing a range of environmental factors. One such factor is atmospheric deposition of nutrients which can be a major flux and can make a significant contribution to ecosystem nutrient input–output budgets (Ranger and Turpault 1999). The atmospherically derived flux of nutrients can in some circumstances approach the same order of magnitude as soil derived fluxes for major nutrients, with the exception of phosphorus which is deposed at very low rate (N, K, Ca and Mg; e.g. Moreno-Marcos and Gallado-Lancho 2002). Atmospheric deposition of nutrients into forest ecosystems is therefore important, but characterising this flux is not straightforward, and there has been considerable debate as to the best approach. Among the different methods dedicated to the measure of atmospheric deposition into forests, the most commonly used (e.g. De Schrijver et al. 2008) is the canopy budget method (Staelens et al. 2008). This quantifying approach is easy to carry out but relies on two important assumptions: (1) a reference element, like sodium, is not exchanged at the foliage–precipitation interface and (2) particles containing the major nutrients are assumed to have the same mass median diameter as for the reference element and consequently have similar deposition dynamics (i.e. a similar ‘forest stand deposition’/‘open-field deposition’ ratio). Here, we focused on this second assumption, which arguably is more controversial and difficult to fully validate (Staelens et al. 2008). Initially, our aim was to homogeneously label trees in the field and then monitor subsequent nutrient deposition dynamics in order to investigate the second assumption. Indeed, homogeneously labelled foliages would enable us to use the isotopic dilution framework and to test whether the deposition ratio is the same for the all studied nutrients. To do this, we designed an in situ labelling experiment on standing trees using stable isotopes of major nutrients (¹⁵N, ²⁶Mg and ⁴²Ca). Over a 2-year period, it became clear that this approach would not be viable; nevertheless, our data did provide important insights into nutrient transport in trees. In particular, we were able to use an upscaling approach to simulate calcium transport in xylem, which successfully explained the observed fate of this element. The simulation approach, its results and potential contribution to the knowledge of nutrient transport in plants are presented.

2 Materials and methods

2.1 Species, study area and experimental stand

The des Landes forest is the largest man-made forest in Europe, covering more than 900,000 ha in south-western France. It was created during the second half of the nineteenth century and initially was managed for the production of resin. For the last few decades, however, the primary product has been wood, mainly destined for paper mills. It is mainly composed of even-aged stands of maritime pine (Pinus pinaster (Ait.)) growing on sandy podzols which are extremely poor in nutrients. In this context, the input flux of nutrients through atmospheric deposition is a major contribution to the maintenance of the soil fertility (Augusto, unpublished data).

Trees selected for this study were within an 8-year-old stand with a density of 2,500 trees ha⁻¹. Mean tree height and mean stem diameter at breast height were 4.8 ± 0.1 m and 8.2 ± 0.6 cm (mean value ± 1 standard error), respectively. The needle mass of the trees was estimated using allometric relationships (Porté et al. 2000) based on the diameter of all branches measured 10 cm from their base. Biomass ranged from 1.08 to 3.97 kg tree⁻¹ for current-year needles and from 0.73 to 2.97 kg tree⁻¹ for 1-year-old needles (dry weight biomass). Older needles were ignored as they represent less than 1% of the foliage in young maritime pine trees (Porté et al. 2000). The three trees which were labelled represented a total foliage biomass of 9.12 kg. Using unpublished results derived from maritime pines of similar age and located in the same area (Trichet [INRA, France], personal communication), we assumed the following nutrient concentrations of tree foliage: N = 10.0 g kg⁻¹, K = 4.5 g kg⁻¹, Ca = 2.5 g kg⁻¹ and Mg = 1.3 g kg⁻¹. Total nutrient contents (kilogramme nutrient per tree) were calculated for each tree.

2.2 Composition of the solution for injection

Swanston and Myrold (1998) proposed the injection of ¹⁵N at a level equivalent to 1% of the total nitrogen content of the tree (kilogramme nutrient per tree). A similar approach was used in the present study, but with slightly lower percentages of ¹⁵N (0.6%) and ⁴²Ca (0.7%). As the natural abundance of ²⁶Mg is high (11.0%), the injected dose was increased to 2.4% of the estimated total Mg content of the foliage. We planned on using ⁴¹K isotope enrichment; however, the high natural abundance ⁴¹K (6.7%) and the cost of the isotope was prohibitive for this study. The solutions for injection were prepared with KNO₃, CaCO₃ and MgO. Calcium carbonate and magnesium oxide were first completely dissolved by adding volumes of HCl (0.5 mol L⁻¹) under agitation (Ca²⁺ and Mg²⁺ in solution). Ultra-pure water was then added to achieve the chosen concentrations: 4.3 g N L⁻¹, 1.4 g Ca L⁻¹ and 2.1 g Mg L⁻¹. Malic acid is one of the primary constituents of sap in most trees and was also included in the solution for injection at a concentration of 0.4 mmol L⁻¹ as previously proposed (Swanston and Myrold 1998). The pH of the solution was adjusted to 5.4 with HCl or KOH, and 1.0 g L⁻¹ of acid fuchsin dye was added (Umebayashi et al. 2007). Dye was added to enable the solution injected into the trees to be traced visually (see below the preliminary tests) and to enable any leaching that occurred during the injection into the stem to be spotted. Labelling solutions were prepared with compounds with the following isotopic enrichment (atom percent): K¹⁵NO₃ ≥ 98%, ⁴²CaCO₃ = 79% and ²⁶MgO = 98.75%. Considering the composition of the solution and the amount of isotopes to be injected, the volume to be introduced into the sapwood was 14.8 ml kg needles⁻¹.

2.3 Stem injection procedure

The first attempts we made using the common passive injection technique (Swanston and Myrold 1998) failed as the injection holes were systematically clogged by the resin of the trees 1 to 4 h after the beginning of the process (even so some dye was found up to 0.9 m above the injection point; data not shown). To prevent the resin from clogging the system, we decided to inject isotopes under pressure, reasoning that by accelerating the injection process, the isotopes could be delivered into the stemwood before resin occluded the injection site. The isotopes were injected at bud break (2 May 2005) into three trees selected for labelling. Three additional trees were used as controls (no stem injection). Six coach screws (length = 45 mm, diameter = 8 mm) were completely drilled (diameter = 4 mm) through their longitudinal axis. A valve was inserted into the top of each coach screw. After bark and phloem were removed, holes (diameter = 6 mm) were drilled perpendicularly into the sapwood. A coach screw was inserted into each hole. Orians et al. (2004) observed that in some tree species, there is a degree of sectoriality to sap flow that could lead to preferential conduction of an injected compound to only one part of the canopy. Consequently, two injection points were located on each tree diametrically opposed and at different heights on the trunk (approximately 15 and 60 cm from the ground). Once all trees were equipped with coach screws, a manual side lever grease gun (Umeta 75/PKU, Germany), previously rinsed with acid (HCl 0.5 mol L⁻¹) and washed with ultra-pure water, was filled with the labelling solution. The grease gun was connected to the valves in the coach screws and used to force the isotope solutions into the stemwood of the trees under pressure (~1.6 ml h⁻¹), which was rated at ~800 bars by the manufacturer. For each tree, the dose solution was split equally between the two injection points. At the end of the injection, the wounds inflicted on the tree during the injection procedure were covered with an inert mastic general purpose garden sealant, and the trees were left undisturbed for 1 month (no sampling of needles, see below).

2.4 Tree sampling

The three labelled trees and three control trees were sampled over a period of 2 years. At each sampling date (for ¹⁵N analyses: 23rd March (pre-injection), 31st May, first July, 20th October 2005; eighth February, 28th March 2006; 21st March 2007; for ⁴²Ca and ²⁶Mg: first July, 11th August 2005; 28th March 2006; 21st March 2007), ten current-year needles and ten 1-year-old needles were collected. The needles were harvested from the outer half of branches in the lower half of the canopy at each cardinal direction (N, W, E and S). The harvest was repeated following the same pattern, but on the inner half of the branches. Finally, all needles of the same age were pooled to form a composite sample for each tree. At some dates (23rd March 2005, 31st May 2005, 20th October 2005 and 21st March 2007), the same sampling procedure was applied in the upper half of the canopy giving two more composite samples (current-year needles and 1-year-old needles) per tree.

At the final date (21st March 2007), the trees were cut down. Stemwood was sampled by cutting 2–3-cm thick disks with a manual saw. Eleven disks per tree were cut as follows: at the level of the injection points (15 and 60 cm from the ground); at 10, 20 and 40 cm above the injection points (25, 35, 55, 70, 80 and 100 cm from the ground); and at 200, 350 and 500 cm from the ground. For the control treatment, the sampling design was 0, 50, 100, 200, 350 and 500 cm from the ground. All living needles were harvested and separated according to their age and tree. They were dried at 70°C and weighed.

2.5 Analyses, calculations and statistics

Needles were gently washed with distilled water and frozen at −80°C to facilitate final grinding. The samples were then dried at 70°C for 48 h, coarsely ground and finally finely ground in a ball mill (Retsch PM4 planetary grinder). Bark was separated from the wood samples, and the wood disk was cut into pieces with a small axe. A representative fraction of the bulk sample of wood was then prepared for analysis using the same methodology as above.

Nitrogen concentration and N isotopic composition were determined using an online continuous flow CN analyser (Carlo Erba NA1500) coupled with an isotope ratio mass spectrometer (Finnigan delta S). Mg and Ca isotope ratios were measured in nitric acid digests of the vegetation using an inductively coupled plasma-mass spectrometer (ICP-MS; 7500i and 7500ce Agilent Technologies (UK) Ltd, Stockport, Cheshire, UK; Weatherall et al. 2006). All isotope ratio measurements were based on ten replicates and three measurements per mass. Correction for mass discrimination during the isotope analysis was made by analyzing a standard solution of known isotopic composition after every ten samples. A mass discrimination term was then calculated across the entire analysis run and a linear correction applied by interpolation to the intervening samples. This procedure was checked by monitoring the isotope ratio of a quality control material (acid digest of vegetation quality control and standards internal to the laboratory) analyzed with the samples.

We calculated two theoretical values for isotopic signatures of needles. The ‘standard values’ are the global natural abundances of ¹⁵N, ⁴²Ca and ²⁶Mg. The ‘maximum values for foliage’ correspond to the theoretical isotopes ratios in the needles if all injected isotopes had been transported into foliage (values calculated assuming the following nutrient concentrations of tree foliage: N = 10.0 g kg⁻¹, Ca = 2.5 g kg⁻¹ and Mg = 1.3 g kg⁻¹).

The percentage of isotope recovery in the foliage was calculated at the final date using the tree biomass, isotope abundances, nutrient concentrations and the injected dose. For the aerial woody compartments, we assumed that the isotope abundances in the branches and in the stembark were similar to the mean value measured in the stemwood. Biomass and nutrient concentrations of branches and stembark were estimated with allometric relationships (Porté et al. 2002) and data published on P. pinaster (Augusto et al. 2008). We used the same approach for the coarse root compartment (Ritson and Sochacki 2003; Trichet, personal communication). Isotope losses through litterfall were estimated based on the weight of the oldest cohort of needles, their nutrient concentration and the isotope abundance. Losses through the turnover of the tree's fine roots were also estimated. The fine root biomass of each tree (kilogramme) was estimated as follows:

$$ {\hbox{Fine}} \,{\hbox{root}}{{\hbox{s}}_{\rm{tree}}} = \left( {\frac{{{\text{Fine}} \,{\text{root}}{{\text{s}}_{\rm{stand}}}}}{{{\hbox{Stan}}{{\hbox{d}}_{\rm{density}}}}}} \right)\, \times \,\left( {\frac{{{\text{S}}{{\text{B}}_{\rm{tree}}}}}{{{\hbox{S}}{{\hbox{B}}_{\rm{stand}}}}}} \right) $$

(1)

where SB_tree and SB_stand were the stem basal area of the tree and the mean stem basal area of the trees of the stand, respectively. Stand density was 2,500 trees ha⁻¹, and Fine roots_stand was fixed at 4 Mg ha⁻¹ based on local studies (Bakker et al. 2009). Since the fine root biomass of each tree was calculated, the isotope losses were estimated using the same method as for litterfall and assuming a root annual turnover of 1. The global recovery percentage of a tree was estimated as the sum of all recovery percentages and losses.

All results were expressed as a mean value ± 1 standard error of the replicates (in percents of atom). The coefficient of variation (hereafter referred to as CV) was calculated as the ‘standard deviation/mean’ ratio. Differences between treatments were tested using the Bonferroni t test and ANOVA with the ‘repeated measurements’ option so as to take into account the dependency of values collected at different sampling dates.

2.6 Simulation of calcium transport

Our initial aim was to use an isotopic dilution technique to test whether the three nutrients studied had similar deposition dynamics. Unfortunately, no homogeneous labelling of the foliage was achieved after 2 years, so that our investigations related to this purpose could not be carried on any further. In response to the rather unexpected findings regarding poor Ca and Mg transport, we went through scientific literature to find plausible explanations instead. This attempt was done using an upscaling approach to simulate calcium transport in xylem.

We only found one reference which enabled us to make some quantitative calculations. Ferguson and Bollard (1976; hereafter referenced to as ‘laboratory’ experiment) monitored in the laboratory the kinetics of ⁴⁵Ca elution from small sections of 1-year-old shoots collected from apple trees. We compared these results, which were obtained in well-controlled conditions on small shoots, with our field experiment using trees (hereafter referenced to as ‘field’ experiment).

Because the xylem has a high cationic exchange capacity (Marschner 1995), we hypothesized that the movement of Ca in the sap could be seen as the transport of a cation in a chromatographic column, as already assumed by Biddulph et al. (1961). In other words, the upward movement of Ca in the xylem was considered as almost completely controlled by exchange reactions (Biddulph et al. 1961; Bell and Biddulph 1963). The rate of ascension was hence assumed not to depend only on the water mass flow but mainly on the flux of cations able to exchange with Ca (Shear and Faust 1970), weighted by their rank in the lyotropic series (Bell and Biddulph 1963), and on sapwood volume (Evans 1964). Because Ca (and Mg) is mainly taken up by roots as cations and by passive process (Marschner 1995), Ca flux was here estimated by multiplying the flux of plant transpiration by the Ca concentration in the soil solution:

$$ \frac{{{\text{Ca}}\;{\text{flux}}}}{{{\hbox{VO}}{{\hbox{L}}_{\rm{sap}}}}} = \frac{{\left( {{\text{TRS}}{{\text{P}}_{{{{\rm{H}}_2}{\rm{O}}}}} \times {{\left[ {\text{Ca}} \right]}_{\rm{sol}}}} \right)}}{{{\hbox{VO}}{{\hbox{L}}_{\rm{sap}}}}} $$

(2)

where ${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O}}}}}$ was the transpiration of water through the plant, [Ca]_sol was the concentration of Ca in the solution supplying the sap and VOL_sap was the volume of the sapwood cylinder.

To test the comparability of the field experiment (our study) with the laboratory experiment (Ferguson and Bollard 1976), we assumed a 30% Ca recovery in foliage consistent with our findings after 2 years (30% was the percent recovery of ⁴²Ca in the foliage at the end of our survey). If the two experiments are comparable, then the homothetic Eqs. 3 and 4 should be verified for 30% of recovery of ⁴²Ca (or ⁴⁵Ca):

$$ \frac{{{\text{Ca}}\;{\text{flu}}{{\text{x}}_{\rm{field}}}}}{{{\hbox{VO}}{{\hbox{L}}_{{{\rm{sap - field}}}}}}}{ = }\frac{{{\text{Ca}}\;{\text{flu}}{{\text{x}}_{\rm{lab}}}}}{{{\hbox{VO}}{{\hbox{L}}_{{{\rm{sap - lab}}}}}}} $$

(3)

and

$$ {\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - field}}}}} = {\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - lab}}}}} \times \frac{{{{\left[ {\text{Ca}} \right]}_{{{\rm{sol - lab}}}}}}}{{{{\left[ {\hbox{Ca}} \right]}_{{{\rm{sol - field}}}}}}} \times \frac{{{\text{VO}}{{\text{L}}_{{{\rm{sap - field}}}}}}}{{{\hbox{VO}}{{\hbox{L}}_{{{\rm{sap - lab}}}}}}}. $$

(4)

For the laboratory values (Ferguson and Bollard 1976), we used the dataset with shoots collected during the growing season (April) because we considered that most of the sap flux occurs at this period ([Ca]_sol-lab = Ca concentration of the elution solution (2.0 × 10⁻³ mol L⁻¹)). The sapwood volume was estimated according to the size of the shoot assuming a sapwood proportion of 0.95 (VOL_sap-lab = 3.2 × 10⁻³ L). The volume of solution which passed through the sapwood for 30% of ⁴⁵Ca recovery was estimated from a figure given in the article cited above (${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - lab}}}}}$ ≈ 28.9 × 10⁻³ L with a rate of elution of 4.5 ml h⁻¹).

For the field values, [Ca]_sol-field was estimated based on a single soil sampling on 14 April 2009. We assumed that one sampling would be indicative of the mean chemical composition of the soil solution over a year, as previously reported in six stands growing on acidic soils (Augusto and Ranger 2001; CV = 14–31% for Ca concentration). Five soil cores were sampled down to around 45 cm. The cores were split into three volumes (corresponding to 0–15, 15–30 and 30–45 cm soil layers; litter was ignored and was minimal with a thickness ≈ 1 cm). Soil samples were immediately sieved (mesh size = 4 mm) and analyzed according to Schneider (2003). The calculated concentration of Ca in the soil solution was estimated by weighting the concentration of each soil layer by the density of fine roots of maritime pine stands located in the same experimental forest (Bakker et al. 2009). These results showed that 85% of the fine roots were in the 0–45-cm layer.

The stem volume of the field experiment was estimated according to the stem base area of the labelled trees and to the length between the injection points and the foliage areas of the lowest branches sampled. The volume of sapwood was calculated assuming a sapwood proportion of 0.88 (data from Augusto et al. 2008).

Once all values required by Eq. 4 were available, ${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - field}}}}}$ was calculated. Finally, we used the ecophysiological GRAECO model (Loustau et al. 2005) to simulate the cumulated transpiration of the labelled trees from the date of injection (2 May 2005) until the last tree sampling (21 March 2007). The cumulated transpiration flux of trees was compared to ${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - field}}}}}$, which was the theoretical transpiration flux needed to explain our results on ⁴²Ca at final sampling. Parameters of the GRAECO model were established on characteristics of our stand (e.g. available soil ≈ 0–50 cm; understory height ≈ 25 cm).

3 Results

3.1 Needles

The isotopic signature of N before injection (23 March 2005) was very homogenous among trees (CV < 1%; Table 1). We assumed similar homogeneity for ⁴²Ca and ²⁶Mg before injection. During the 2-year period of the experiment, the isotopic signature of control trees was constant and at natural abundance for each of the measured isotopes (0.371 ± 0.001 at.% (atom percent) ¹⁵N, 0.661 ± 0.018 at.% ⁴²Ca and 11.12 ± 0.03 at.% ²⁶Mg).

Table 1 Mean ¹⁵N abundance values of needles in relation to the time after labelling and position in the canopy

The pressure injection approach enabled the labelling solution to be successfully introduced into the trees. However, in the case of one tree, a few millilitres of solution (visually estimated as ≈2–5 ml) were lost when the pressure imposed by the grease gun inside the tree was too high. The loss of the injected solution was due to leaching through wood and bark (at a distance of ~10 cm from the injection point).

Except during and just after the bud break period, no temporal trend was observed in the concentration of nitrogen in the needles (Table 1). Current-year needles had slightly higher N concentrations than 1-year-old needles. No significant difference was observed between labelled trees and control trees even if there appeared to be an insignificant trend, at least in the 2005–2006 winter in current-year needles. The nitrogen concentration was lower (6 to 10 g kg⁻¹) than expected (10 g kg⁻¹).

After injection, labelled trees showed higher ¹⁵N abundance than control trees as expected (Fig. 1). These differences were significant at all dates (P < 0.05). Nitrogen isotope composition was quite heterogeneous 1 month after injection (CV: current-year needles = 89%; 1-year-old needles = 14%) partly due to the partial loss for one tree of the labelling solution. Heterogeneity decreased over time, mainly in current-year needles (CV: first July 2005 = 37%; 20th October 2005 = 20%; eighth February 2006 = 5%; 21st March 2007 = 3%). After 1 month, the isotopic signal decreased. One-year-old needles showed a similar trend but of lower magnitude. Although the ¹⁵N signal decreased strongly, labelling was still clearly detectable 1 year after the injection (current-year needles, 0.47 ± 0.02 at.% ¹⁵N; 1-year-old needles, 0.43 ± 0.00 at.% ¹⁵N). Two years after the injection, the labelling was relatively constant and homogenous among cohorts and trees (0.43 ± 0.00 at.% ¹⁵N; δ¹⁵N = 191 ± 21‰). At this date, 7–11% of the injected ¹⁵N was recovered in the labelled foliage. As needle biomass was not monitored during the experiment, it was not possible to calculate the recovery percentage in a reliable way for other dates. The final total foliage biomass was 1.91–5.86 kg for the labelled trees, which confirmed the validity of the allometric relationships used (data not shown). The estimated ¹⁵N recovery was 42–62% for the total aboveground biomass (stem + canopy). When coarse root biomass, litterfall and fine root turnover were also taken into account, the estimated recovery (based on several assumptions) was 73% for the tree from which some solution leaked and ≥94% for the other trees.

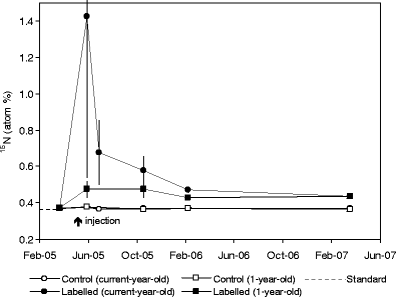

Fig. 1

¹⁵N content of needles, means ± 1 standard error (n = 3). The measured natural abundance level of the ¹⁵N in the needles is indicated on the graph. Error bars could not been drawn for some points because of very low standard error values

Initially, there was no statistically significant difference in the ¹⁵N abundance between needle cohorts (P ≥ 0.16), but heterogeneity of the ¹⁵N abundance in the few months after injection prevented any difference from being detected. In the latter half of the experiment, the signals of the cohorts had clearly converged (Fig. 1). No significant difference was detected between needles from the lower half of the canopy and those from the upper half (Table 1) on the sampling dates when homogeneity within each tree was explored (31st May 2005, 20th October 2005 and 21st March 2007; P ≥ 0.17). However, there appeared to be a trend towards greater enrichment in the lower half of the canopy during the first year.

No significant change, or even apparent trend, of isotope composition was detected for Ca (Fig. 2; P = 0.80) or Mg (Fig. 3; P = 0.90) during the first year of the survey. ⁴²Ca and ²⁶Mg abundances in both control trees and injected trees remained close to the natural abundance level during the first half of the experiment. Concentrations of ⁴²Ca and ²⁶Mg in foliage rose in the second year of the survey (Figs. 2 and 3). However, the signal was heterogeneous within the canopy of each tree, mostly for Ca (CV = 34%). The final recovery of ⁴²Ca and ²⁶Mg in the foliage was 30% and 17%, respectively. Considering the heterogeneity of the isotopic signals, these figures should be treated with a degree of caution.

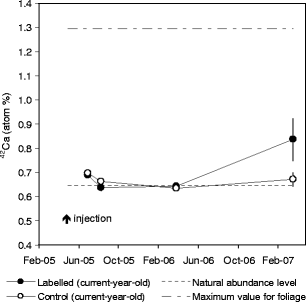

Fig. 2

⁴²Ca content of needles, means ± 1 standard error (n = 3). The accepted natural abundance level of ⁴²Ca is illustrated together with the theoretical maximum isotope level assuming all the injected isotope was in the foliage. Error bars could not been drawn for some points because of very low standard error values

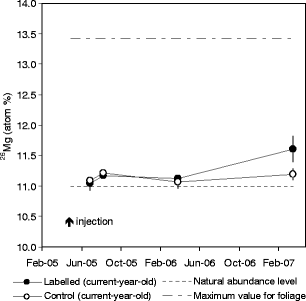

Fig. 3

²⁶Mg content of needles, means ± 1 standard error (n = 3). The accepted natural abundance level of ²⁶Mg is illustrated together with the theoretical maximum isotope level assuming all the injected isotope was in the foliage. Error bars could not been drawn for some points because of very low standard error values

3.2 Stemwood

The dye was still present at the wound sites which could explain the high enrichment in stemwood near the injection points (data not shown). With the exception of the injection points and the stem volume within 10 cm of the injection points which exhibited high ¹⁵N enrichment, the ¹⁵N signal was fairly homogenous (CV < 5%) and significantly different (P ≤ 0.04) from control trees (0.37 ± 0.00 at.% ¹⁵N; δ¹⁵N = 2 ± 1‰) in each labelled tree (0.50 ± 0.02 at.% ¹⁵N; δ¹⁵N = 356 ± 25‰). The ⁴²Ca and ²⁶Mg abundances of stemwood from labelled trees were not different (P ≥ 0.30) from baseline values in the lower part of the trunk (⁴²Ca = 0.65 at.%; ²⁶Mg = 11.01 at.%). In the upper part (≥200 cm), some samples showed very high values (⁴²Ca: up to 1.03 at.%; ²⁶Mg: up to 12.09 at.%). However, heterogeneity was high, the values were scattered and no clear systematic distribution was observed (data not shown).

3.3 Simulation of calcium transport

The heterogeneity of the Ca and Mg labelling of the foliage disabled us from using the isotopic dilution technique. Consequently, we were not able to reliably test whether the ‘forest stand deposition’/‘open-field deposition’ ratio was the same for the three studied nutrients. The simulation results for Ca transport were as follows:

The Ca concentration in the different soil layers was 2.4–4.5 × 10⁻⁵ mol L⁻¹. Taking into account the fine roots distribution in the soil, the final mean Ca concentration in the solution (i.e. [Ca]_sol-field) was 4.0 × 10⁻⁵ mol L⁻¹. This value was one to two orders of magnitude lower than [Ca]_sol-lab. The stem volume of the field experiment (VOL_sap-field) ranged from 3.3 to 8.0 L. This range of values was three orders of magnitude higher than VOL_sap-lab.

${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - field}}}}}$ calculated from Eq. 4 ranged from 1,446 to 3,524 L tree⁻¹, which was four to five orders of magnitude higher than ${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - lab}}}}}$. The cumulated fluxes of transpiration of the labelled trees as simulated by the GRAECO ecophysiological model were 1,587 to 4,870 L tree⁻¹ (lines in Fig. 4), which corresponded to 1.1–1.4-fold higher values than ${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - field}}}}}$ calculated with Eq. 4. The period when this cumulated flux corresponded to the calculated value of ${\hbox{TRS}}{{\hbox{P}}_{{{{\rm{H}}_2}{\rm{O - field}}}}}$ was thus 14th July 2006 to 14th January 2007 (Fig. 4). Then, the delay between the injection of ⁴²Ca and the calculated dates was 1.20–1.71 years. The real delay between the date of injection and the last sampling date of foliage was 1.89 years. So, the calculated dates and the date of analysis for which 30% of the injected ⁴²Ca was recovered in the needles were in the same order of magnitude.

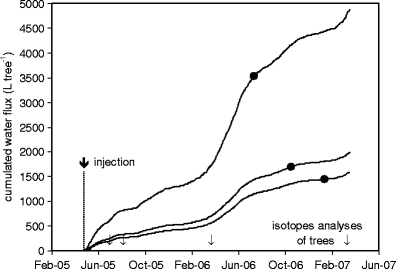

Fig. 4

Simulation of the cumulated water flux by transpiration of the three labelled trees. Calculations were made using the GRAECO model. Closed circles indicate the date at which the cumulated water flux corresponded to the value theoretically necessary to reach 30% of ⁴²Ca recovery in the needles (see Eq. 4 and related text)

4 Discussion

4.1 Isotopic labelling of trees

4.1.1 Nitrogen

Direct labelling of trees with low-cost ¹⁵N and delivered using stem injection produced results comparable with those of Swanston and Myrold (1998). In both cases, foliage isotopic enrichment was quite high and heterogeneous a few weeks after the injection, which suggests a quite high sectoriality of the sap flow (Orians et al. 2004). Indeed, spiral ascent of sap is a common pattern in gymnosperm trees (Kozlowski et al. 1967; Waisel et al. 1972), which could explain the observed short-term heterogeneity.

The transport of nitrogen in the sapwood was rapid (<1 month according to isotopic analyses), in a few days assuming an undelayed mass flow transport (Meinzer et al. 2001). Thereafter, foliage isotopic enrichment decreased and became homogenous after a few months. Both experiments demonstrated a similar N enrichment after 1 year (around 0.45 at.% ¹⁵N), which represents sufficient labelling for biogeochemical study purposes (δ¹⁵N > 100‰). Labelling peaked first in young needles: this was a common result in other experiments (e.g. Nadelhoffer et al. 1999), which is generally attributed to the higher physiological activity of this fast-growing foliage.

The recovery percentage of ¹⁵N in foliage 1 year after injection was low in our experiment (≈10%) compared to those of Proe et al. (2000a; 40–70%) in 4-year-old Pinus radiata. The ‘foliage biomass/woody aerial biomass’ ratio decreases steeply with tree age (Ritson and Sochacki 2003), and as our trees were older than those used by Proe et al., we suggest that our lower recovery percentage was due to a larger nitrogen sink in the trees' woody components. This hypothesis is consistent with our estimates of the recovery percentage of ¹⁵N for the tree total biomass and to published results which showed that stems, stumps, coarse roots and fine roots may contain a very high percentage of the injected nitrogen (Seiter and Horwath 1999; Dail et al. 2009; Garten and Brice 2009).

4.1.2 Calcium and magnesium

Our data indicated that Ca and Mg have very low mobility in this species of pine, similar to results observed for ⁴⁵Ca on apple seedlings (Shear and Faust 1970) and for ²⁶Mg on pine trees (Payn [Scion Inst., N.Z.], personal communication). These results seem to be in contradiction with those of Brandtberg et al. (2004) which showed a detectable uptake of ⁴⁵Ca, a radio-isotope, by trees only 1 month after isotopes application onto soils. Since this reference did not show any recovery rate, we tried to estimate them. Taking into account the decrease in radioactivity after 1 month (⁴⁵Ca half-life = 162.6 days) and assuming a tree foliage biomass of 10 kg tree⁻¹, we estimated that only 0.04–0.31% of the injected ⁴⁵Ca was present in the foliage in the study by Brandtberg and his colleagues. On the other hand, we consider that at least 10% of the injected ⁴²Ca and ²⁶Mg should have been recovered in the foliage in our experiment to visibly increase the abundance of the injected isotopes (from 0.65 to 0.71 at.% for ⁴²Ca; from 11.01 to 11.36 at.% for ²⁶Mg). This comparison illustrates the difference in sensitivity between the radio-isotopic approach and approaches using stable isotopes. The former is highly sensitive as it measures a radiation flux which was initially absent from the object under study (Göransson et al. 2006), the trees in this case, whereas the latter measures the dilution of a pre-existing isotope pool. Consequently, we conclude that the two studies are not inconsistent with each other and that the methodological difference can explain the discrepancy in the time lag between labelling and a significant response in the tree foliage.

4.2 Simulation of calcium transport

The parameter values for Ca concentration in solution, volume of sapwood and water transpiration were highly different (two to five orders of magnitude) between the two datasets (laboratory and field experiments). Even though, the simulated delay between the injection of Ca into sapwood and its retrieval in foliage was consistent with our survey results. The differences observed were not surprising since several assumptions and approximations were necessary to complete the simulations. Consequently, we considered that the moderate discrepancy between the two approaches was logical and that the field results were consistent with those obtained in laboratory conditions.

4.3 Interpretation of the results

4.3.1 Nitrogen

Nitrogen is transported as monovalent ions (NO ⁻₃ and NH ⁺₄ ) in the xylem, and its conduction seems to be rapid (Marschner 1995). Similarly, nitrogen is intensively translocated among tree compartments (Colin-Belgrand et al. 1996; Proe et al. 2000b; Fife et al. 2008) owing to its high mobility through the phloem (Marschner 1995). Our results were in agreement with this functioning scheme (rapid increase followed by an ~80–90% decrease of the ¹⁵N signal in the foliage due to dilution by subsequent uptake of ¹⁴N and internal recycling of ¹⁵N).

4.3.2 Calcium

Calcium mobility is known to be low because of its very strong adsorption on the cell walls of the xylem (e.g. Kuhn et al. 1995). Indeed, xylem vessels contain fixed negative charges, which are associated with cations and divalent cations, such as Ca, which are more strongly retained in the vessels than monovalent cations (e.g. Zwieniecki et al. 2001). In addition, the mobility of Ca in the phloem is extremely low due to physiological constraints (Marschner 1995), which explain that this nutrient resists retranslocation within the tree (e.g. Colin-Belgrand et al. 1996; Fife et al. 2008). Therefore, the very slow response of the foliage to ⁴²Ca injection into the stem was probably more related to the ions than to the method of injection or to the method of sampling. Moreover, the upscaling of results obtained over a short period in shoots (Ferguson and Bollard 1976) to our experimental conditions (monitoring of standing trees over a period of 2 years) was in reasonable agreement with the curves of the isotope composition. It suggested that the general theory for ionic exchanges explains most of the Ca rate of transport in the xylem.

We speculate that the conduction of most of ⁴²Ca in the sapwood occurred as a ‘slowly advancing front’, like in a chromatographic column. In this hypothesis, when ⁴²Ca cations were injected into the sapwood, almost all of them immediately exchanged with Ca already present on the surface of the sapwood vessels (Biddulph et al. 1961). An almost insignificant proportion probably remained in the sap and quickly reached the upper part of the plant (Brandtberg et al. 2004). Once all ⁴²Ca cations were adsorbed near the injection points, they remained immobile unless a flux of further Ca absorbed by the trees from the soil enables exchange allowing ‘upward movement’ from the injection point (Bell and Biddulph 1963; Jacoby 1967). The movement of the injected isotope was then accomplished by successive exchanges along the tree sapwood and was controlled by the flux of Ca which passed through the stem section (Bell and Biddulph 1963).

4.3.3 Magnesium

Some analogies could be made between Mg and Ca. Indeed, because there are both divalent cations, their transport in the xylem is delayed by the negative charges of the vessels. In the same way, even if the mobility of Mg in the phloem is high, the effective flux of this nutrient through phloem transport is low to moderate (Marschner 1995; Proe et al. 2000b). Our results were supported by this pattern as the introduced ²⁶Mg reached foliage more than 1 year after injection. The lower percentage of recovery of ²⁶Mg in the foliage compared to those of ⁴²Ca may be due to competition among cations because Mg flux is known to be depressed by other cations (Kurvits and Kirby 1980; Heenan and Campbell 1981). Another explanation could be that ²⁶Mg, which reached foliage during the second growing season, was partly remobilized though phloem transport during the following fall (Proe et al. 2000b; Weatherall et al. 2006). The ratio of total concentration in P. pinaster needles between current-year-old needles and 1-year-old needles supported this hypothesis (N > 1, Mg = 1 and Ca < 1; Augusto et al. 2008). Indeed, it indicated that nitrogen is intensively remobilized from current-year-needles during the fall season, that Ca is accumulated during all needle life (Fife et al. 2008), whereas Mg has an intermediate fate.

5 Conclusion

The initial objective was to obtain a homogenous labelling of tree foliage to test an assumption on atmospheric deposition. This objective could not be attained because of the labelling delay. Direct labelling of tall trees within a single growing season using stable isotopes is suitable for N but not easy to carry out for Ca or Mg. For stable isotopes, the long time lag between injection and visible labelling and the high variability will likely be problematic in many experimental designs. To improve the ⁴²Ca and ²⁶Mg labelling of trees, we suggest introducing a highly concentrated solution of KCl (van Ieperen and van Gelder 2006) or divalent cations (Bell and Biddulph 1963), which should cause an efflux of the ⁴²Ca and ²⁶Mg adsorbed on the vessels through exchange reactions. Introducing the tracer in a complex form, with EDTA for instance (Ferguson and Bollard 1976), or injecting the isotopes close to the canopy could be alternative methods. However, even with a significant amount of ⁴²Ca at the foliage level, a long period may be necessary to homogeneously label the tree as this nutrient is not easily translocated from the foliage (Marschner 1995; Fife et al. 2008). An alternative could be to use radioisotopes (Brandtberg et al. 2004), but this approach has also environmental and technical constraints.

The results of the present in situ study obtained at the tree scale were in accordance with current knowledge on nutrient transport in plants, which is mainly based on annual plants or seedlings (see Marschner (1995) for a synthesis). This consistency suggested that the theory of transport of some nutrients as previously observed at the shoot scale in controlled conditions is likely to be valid at the tree scale. In this scheme, nutrients which are transported as anions (e.g. NO ⁻₃ or PO ²⁻₄ ) are not be adsorbed in the sapwood and are be conducted in a very short time to the foliage (Ferguson and Bollard 1976; Göransson et al. 2006) by mass flow. Conversely, most of the upward transport of divalent cations (e.g. Ca²⁺ and Mg²⁺) is accomplished by successive exchanges along the tree stem and branches.
