24-Epibrassinolide mitigates nickel toxicity in young Eucalyptus urophylla S.T. Blake plants: nutritional, physiological, biochemical, anatomical and morphological responses

Abstract

Key message

Our research revealed that 24-epibrassinolide alleviated nickel toxicity in young Eucalyptus urophylla plants, inducing benefits on nutritional, physiological, biochemical, anatomical and morphological responses.

Context

Soil contamination by heavy metals may limit the Eucalyptus production. Disturbances caused by nickel (Ni) toxicity interfere with the absorption of other essential nutrients. 24-Epibrassinolide (EBR) is one form of brassinosteroid (BR) that provides benefits for plant metabolism under Ni toxicity.

Aims

The aim of this study was to determine whether exogenous EBR can improve ionic homeostasis by evaluating nutrient concentrations, anatomical characteristics and chlorophyll fluorescence in young Eucalyptus urophylla plants subjected to Ni toxicity.

Methods

The experiment was randomized into four treatments, including two Ni concentrations (0 and 600 μM Ni) and two 24-epibrassinolide concentrations (0 and 100 nM EBR).

Results

EBR significantly reduced Ni contents. Plants exposed to Ni²⁺ and sprayed with steroid had increases in the Ca²⁺/Ni²⁺ and Mn²⁺/Ni²⁺ ratios in the leaves of 38% and 15%, respectively, compared with the same treatment without EBR. The treatment of Ni²⁺ toxicity + EBR presented an increase of 42% in effective quantum yield of PSII photochemistry, when compared with plants exposed to Ni without EBR. Ni toxicity induced negative effects on stomatal functionality, but EBR application mitigated these effects.

Conclusion

Benefits on effective quantum yield of PSII photochemistry after EBR spray can be related to increases in manganese contents. EBR reduced oxidative stress, alleviating the deleterious effects induced by Ni toxicity and inducing positive repercussions on antioxidant enzymes, photosynthetic pigments and biomass.

1 Introduction

The growing demand for wood accompanied by a reduction in the supply of the remaining natural forests has influenced the rapid expansion of plantations, in which Eucalyptus plays an important role, particularly in Brazil (Tadele and Teketay 2014). This genus comprises of species that present a broad adaptability to different types of soils and climates, rapid growth and multiple uses of the wood (Jenbere et al. 2012; Neiva et al. 2015). Eucalyptus plantations cover over more than 20 million hectares in tropical and temperate regions around the world (Mora et al. 2017). In 2016, Brazil had a better position in the global ranking of forestry yield (35.7 m³ ha⁻¹ per year), cultivating an area of approximately 5.7 million ha with planted trees (IBÁ 2017).

Soil contamination by heavy metals may limit Eucalyptus production in field conditions. Nickel (Ni) is one of the heavy metals most frequently found in the environment (Ashraf et al. 2011; Vázquez et al. 2013; Hussain et al. 2013), and high Ni concentrations have been described in ultramafic soils or polluted soils, with occurrence also in Brazil (Reeves et al. 2007). In Brazil, areas with ultramafic soils have been used Eucalyptus during phytoremediation process and consequent Ni extraction from soil, because this gender presents higher tolerance to heavy metals, comparing with other species (Gomes et al. 2012; Korzeniowska and Stanislawska-Glubiak 2019). The causes of environmental contamination provoked by Ni can be natural or anthropogenic (Harasim and Filipek 2015), natural causes include mainly the weathering of ultrabasic igneous rocks (Yusuf et al. 2011b), while anthropogenic causes include an intensification of industrialisation processes and urbanization (Nagajyoti et al. 2010).

Ni in excess causes toxic effects on plants, causing damage to tissues and negative interferences in plant metabolism (Yusuf et al. 2011b; Bazihizina et al. 2015). The indicators most commonly found for Ni phytotoxicity include inhibition of germination, leaf necrosis, root system reduction, organ deformation and reduced growth (Nie et al. 2015; Kuramshina et al. 2018). Excess Ni affects several physiological and biochemical processes in higher plants (Amari et al. 2014), including reductions of gas exchange (Velikova et al. 2011) and decreases in chlorophyll levels (Sirhindi et al. 2016).

Disturbances induced by Ni²⁺ toxicity frequently cause interferences on uptake of other essential nutrients, such as Ca²⁺ and Mn²⁺ (Pandey and Sharma 2002; Chen et al. 2009; Nishida et al. 2011; Saad et al. 2016), because these elements are assimilated in the form of divalent cations (Yusuf et al. 2011a; Sharma and Dhiman 2013). More specifically, Ni can negatively affects the concentration and availability of cytosolic Ca²⁺, which is a secondary messenger involved in the signalling and regulation of the stomatal opening in plants (Laanemets et al. 2013; Edel and Kudla 2016). In addition, Ni²⁺ can also inhibit the absorption of Mn²⁺, reducing the photosynthesis because the Mn²⁺ integrates the catalytic agglomerate of the oxygen evolution complex of photosystem II, in which light energy is used for photosynthetic oxidation of intracellular water and oxygen formation (Shutilova 2010; Schmidt et al. 2016; Gao et al. 2018).

Ionic homeostasis corresponds to the condition that the nutrients are in equilibrium in plant tissues (Rouached et al. 2010), but Ni toxicity frequently induces damages on transporter proteins and membrane disruption (Mizuno et al. 2005), provoking imbalances on element contents that are essentials to adequate growth and development (Seregin and Kozhevnikova 2006). Matraszek et al. (2016) studying the Ni effects on Triticum aestivum described substantial reductions on macro and micronutrients in root and shoot tissues.

The root is a tissue with intense interactions during stress situations induced by heavy metals, causing cellular disorganization and negatively affecting the uptake, transport and accumulation of water and nutrients (Aroca et al. 2012; Garcia et al. 2018). In this context, the vascular cylinder is a structure composed of xylem and phloem, highly vascularized and intrinsically related to the transport of solubilized elements and organic solutes, respectively (Mellor et al. 2017). On the other hand, the leaf represents a tissue highly sensitive and responsive to intoxication by metals, including Ni (Djebali et al. 2005; Pérez Chaca et al. 2014; Santos et al. 2017). Epidermis is often considered as an efficient protective structure (Javelle et al. 2011), while the palisade and spongy parenchyma are structures linked to the diffusion and distribution of CO₂, being the photosynthetic process depends of the CO₂ supply (Poorter et al. 2009).

One of the methods used to decrease the toxic effect of excess heavy metals is the exogenous application of and/or manipulation of the endogenous concentration of brassinosteroids (BRs) (Bajguz and Hayat 2009; Lima et al. 2018). BRs are molecules of polyhydroxylated steroids with broad biological activity (Choudhary et al. 2012; Bajguz and Piotrowska-Niczyporuk 2014). The 24-epibrassinolide (EBR) is the form most bioactive of plant steroid, playing key roles in growth and development (Fariduddin et al. 2014; Seldimirova et al. 2017), including vascular differentiation (Ibanes et al. 2009) and cell elongation in different organs and tissues (Gudesblat and Russinova 2011; Choudhary et al. 2012). Additionally, several studies have proven that these steroids have multiple effects (direct and indirect), contributing on modulation of gene expression (Sharma et al. 2017), maintenance of the photochemical efficiency of the PSII (Lima and Lobato 2017), increases linked to gas exchange (Santos et al. 2018), maximization of photosynthetic pigments (Siddiqui et al. 2018) and alleviation of oxidative stress (Ahammed et al. 2013a).

Our hypothesis was based on the reductions induced by Ni toxicity on nutrient contents and consequently ionic homeostasis (Ahmad et al. 2007; Deng et al. 2016). In addition, there are interesting evidences that EBR can mitigate the effects caused by the toxicity of metals, including Ni. Ali et al. (2008) studying Brassica juncea plants verified increments on photosynthetic pigments and gas exchange. Yusuf et al. (2012) detected increases in enzyme activities of the antioxidant system in Vigna radiata plants. Soares et al. (2016) reported that EBR enhanced the growth of Solanum nigrum plants. Lukatkin et al. (2013) also observed positive repercussions on the seed germination rate of Zea mays seedlings. In this context, the aim of this study was to determine whether exogenous EBR can improve homeostasis by evaluating the responses associated with nutrient concentrations, anatomical characteristics, gas exchange and chlorophyll fluorescence in young Eucalyptus urophylla plants subjected to Ni toxicity.

2 Materials and methods

2.1 Location and growth conditions

The experiment was performed at the Campus of Paragominas of the Universidade Federal Rural da Amazônia, Paragominas, Brazil (2°55′ S, 47°34′ W). The study was conducted in a greenhouse with the temperature and humidity controlled. The minimum, maximum and median temperatures were 28, 33 and 26.9 °C, respectively. The relative humidity during the experimental period varied between 60 and 80%. Average maximum photosynthetic photon flux density was 755 μmol m⁻² s⁻¹ (plant canopy), and photoperiod of 12 h.

2.2 Plants, containers and acclimation

Forty-five-day-old E. urophylla plants were selected and placed in 1.2-L containers filled with sand and vermiculite in a 3:1 ratio. Plants were cultivated under semi-hydroponic conditions containing 500 mL of nutritive solution, being the solution absorption by capillarity in agreement with Lima et al. (2018). Modified Hoagland and Arnon (1950) solution was used as a source of nutrients; the ionic strength started at 50% (45th day) and was modified to 100% after 5 days (50th day).

2.3 Experimental design

The experiment was randomized with four treatments, including two Ni concentrations (0 and 600 μM Ni, described as—Ni²⁺ and + Ni²⁺, respectively) and two concentrations of brassinosteroids (0 and 100 nM EBR, described as—EBR and + EBR, respectively). The experiment comprised five replicate individuals per treatment.

2.4 24-epibrassinolide (EBR) preparation and application

Fifty-five-day-old plants were sprayed with 24-epibrassinolide (EBR) or Milli-Q water (containing a proportion of ethanol that was equal to that used to prepare the EBR solution) at 5-day intervals until day 85. The 0 and 100 nM EBR (Sigma-Aldrich, USA) solutions were prepared by dissolving the solute in ethanol followed by dilution with Milli-Q water [ethanol:water (v/v) = 1:10,000] (Ahammed et al. 2013b).

2.5 Plant nutrition and Ni treatment

The plants received the following macro- and micro-nutrients contained in the nutrient solution: 8.75 mM KNO₃, 7.5 mM Ca(NO₃)₂·4H₂O, 3.25 mM NH₄H₂PO₄, 1.5 mM MgSO₄·7 H₂O, 62.50 μM KCl, 31.25 μM H₃BO₃, 2.50 μM MnSO₄·H₂O, 2.50 μM ZnSO₄·7H₂O, 0.63 μM CuSO₄·5H₂O, 0.63 μM NaMoO₄·5H₂O and 250.0 μM NaEDTAFe·3H₂O. To simulate Ni²⁺ toxicity, NiCl₂ was used at concentrations of 0 and 600 mM Ni, which was applied over 15 days (days 70–85 after the start of the experiment). Nutrient solutions were changed at 07:00 h at 3-day intervals, with pH adjusted to 5.5.

2.6 Measurement of chlorophyll fluorescence and gas exchange

Chlorophyll fluorescence was measured using a modulated chlorophyll fluorometer (model OS5p; Opti-Sciences) in fully expanded leaves under light. Preliminary tests determined the location of the leaf, the part of the leaf and the time required to obtain the greatest Fv/Fm ratio; therefore, the acropetal third of leaves that were in the middle third of the plant and adapted to the dark for 30 min was used in the evaluation. The intensity and duration of the saturation light pulse were 7500 μmol m⁻² s⁻¹ and 0.7 s, respectively. The gas exchange was evaluated using an infrared gas analyser (model LCPro+; ADC BioScientific) in all plants under constant conditions of CO₂ concentration, photosynthetically active radiation, air-flow rate and temperature in a chamber at 360 μmol mol⁻¹ CO₂, 800 μmol photons m⁻² s⁻¹, 300 μmol s⁻¹ and 28 °C, respectively, between 10:00 and 12:00 h.

2.7 Leaf and root anatomy

Samples were collected from the middle region of the leaf limb of fully expanded leaves and roots 5 cm from the root apex, being used five samples. All botanical material was fixed in FAA 70 for 24 h, dehydrated in ethanol and embedded in historesin Leica™ (Leica, Nussloch, Germany). Transverse sections with a thickness of 5 μm were obtained with a rotating microtome (model Leica RM 2245, Leica Biosystems) and were stained with toluidine blue (O’Brien et al. 1964). For stomatal characterization, the epidermal impression method was used according to Segatto et al. (2004). The slides were observed and photomicrographed under an optical microscope (Motic BA 310, Motic Group Co. LTD.) coupled to a digital camera (Motic 2500, Motic Group Co., LTD.). The images were analysed with Motic plus 2.0, which was previously calibrated with a micrometre slide supplied by the manufacturer.

2.8 Determining of Ni and nutrients

Samples with 100 mg of milled samples were weighed in 50-mL conical tubes (Falcon^R, Corning, Mexico) and pre-digested (48 h) with 2 ml of sub boiled HNO₃ (DST 1000, Savillex, USA). After, 8 ml of a solution containing 4 ml of H₂O₂ (30% v/v, Synth, Brasil) and 4 ml of ultra-pure water (Milli-Q System, Millipore, USA) were added, and the mixture was transferred to a Teflon digestion vessel, closed and heated in a block digester (EasyDigest®, Analab, France). The determinations of Ni, P, Ca, S, B, Mn and Mo were carried out using an inductively coupled plasma mass spectrometer (ICP-MS 7900, Agilent, USA).

2.9 Extraction of antioxidant enzymes, superoxide and soluble proteins

Antioxidant enzymes (SOD, CAT, APX and POX), superoxide and soluble proteins were extracted from leaf tissues according to the method of Badawi et al. (2004). Quantification of the total soluble proteins was performed using the method described by (Bradford 1976). Absorbance was measured at 595 nm, using bovine albumin as a standard. SOD assay (EC 1.15.1.1) was measured at 560 nm (Giannopolitis and Ries 1977).One SOD unit was defined as the amount of enzyme required to inhibit 50% of the NBT photoreduction. The SOD activity was expressed in unit mg⁻¹ protein. CAT assay (EC 1.11.1.6) was measured at 240 nm (Havir and McHale 1987). The CAT activity was expressed in μmol H₂O₂ mg⁻¹ protein min⁻¹. APX assay (EC 1.11.1.11) was measured at 290 nm (Nakano and Asada 1981). The APX activity was expressed in μmol AsA mg⁻¹ protein min⁻¹. POX assay (EC 1.11.1.7 measured at 470 nm (Cakmak and Marschner 1992). The POX activity was expressed in μmol tetraguaiacol mg⁻¹ protein min⁻¹.

2.10 Determination of superoxide concentration

To determine O₂⁻, 1 ml of extract was incubated with 30 mM phosphate buffer [pH 7.6] and 0.51 mM hydroxylamine hydrochloride for 20 min at 25 °C. Then, 17 mM sulphanilamide and 7 mM α-naphthylamine were added to the incubation mixture for 20 min at 25 °C. After the reaction, ethyl ether was added in the identical volume and centrifuged at 3000 ×g for 5 min. The absorbance was measured at 530 nm (Elstner and Heupel 1976).

2.11 Extraction of nonenzymatic compounds

Nonenzymatic compounds (H₂O₂ and MDA) were extracted as described by Wu et al. (2006). Briefly, a mixture for extraction of H₂O₂ and MDA was prepared by homogenizing 500 mg of fresh leaf materials in 5 mL of 5% (w/v) trichloroacetic acid. To measure, H₂O₂ was measured at 390 nm (Velikova et al. 2000). MDA was determined by the method of Cakmak and Horst (1991), with minor modifications and using an extinction coefficient of 155 mM⁻¹ cm⁻¹.

2.12 Determination of electrolyte leakage and photosynthetic pigments

Electrolyte leakage was measured according to the method of Gong et al. (1998) with minor modifications. Pigments were quantified using a spectrophotometer (model UV-M51; Bel Photonics), according to the methodology of Lichtenthaler and Buschmann (2001).

2.13 Measurements of biomass

The biomass of root, stem and leaf was measured based on constant dry weight (g), after drying in a forced-air ventilation oven at 65 °C.

2.14 Data analysis

The data (Ribeiro et al. 2019) had the homogeneity of variances tested and subsequently were submitted to one-way ANOVA and applied Scott–Knott test at a probability level of 5% (Steel et al. 2006). All statistical procedures used the Assistat 7.7 software.

3 Results

3.1 EBR reduced the Ni content and positively modulated the root anatomy

Ni²⁺ treatment promoted a significant increase in Ni content in all tissues of E. urophylla (Table 1). Plants exposed to Ni²⁺ and EBR presented smaller Ni contents in leaf, stem and root. Plants subjected to Ni²⁺ toxicity. Plants subjected to Ni²⁺ toxicity displayed largely changed root anatomy (Fig. 1). However, the application of 100 nM of EBR in plants subjected to 600 μM of Ni²⁺ promoted increases in RET, RDT, RCT, VCD and RMD, comparison with similar treatment without EBR (Table 2).

Table 1 Ni contents in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity

Fig. 1

Root cross sections in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity. − Ni²⁺/− EBR (A), − Ni²⁺/+ EBR (B), + Ni²⁺/− EBR (C), and + Ni²⁺/+ EBR (D). Legends: RE = Root epidermis; RC = Root cortex; RD = Root endodermis; VC = Vascular cylinder; RM = Root metaxylem. Bars 300 μm

Table 2 Root anatomy in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity

3.2 EBR increased the nutrient content and induced ionic homeostasis in plants treated with Ni

Ni²⁺ resulted in smaller contents of all nutrients in root, stem and leaf tissues (Table 3), compared with control plants. However, plants treated with Ni²⁺ and EBR displayed higher levels of P, Ca, S, B, Mn and Mo in root, stem and leaf, when compared to the same treatment without EBR. Treatment in the absence of Ni²⁺ and spraying with EBR also showed increases in P, Ca, S, B, Mn and Mo in all tissues evaluated, compared to treatment under absence Ni²⁺ and without EBR. On ionic ratios, plants exposed to Ni²⁺ and sprayed with EBR had increases in Ca²⁺/Ni²⁺ and Mn²⁺/Ni²⁺ ratios in root, stem and leaf (Table 4), compared with equal treatment without EBR.

Table 3 Nutrient contents in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity

Table 4 Ionic ratios in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity

3.3 Foliar spray increased the levels of photosynthetic pigments

Ni²⁺ toxicity caused a decrease in the levels of photosynthetic pigments (Table 5). The plants exposed to Ni²⁺ and EBR showed increases in Chl a, Chl b, Car and Chl total, respectively, and reductions in Chl a/Chl b and Chl total/Car, when compared to the same treatment without EBR.

Table 5 Photosynthetic pigments, chlorophyll fluorescence and gas exchange in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity

3.4 Steroids enhanced the photon capture efficiency

Plants exposed to Ni²⁺ toxicity suffered negative interferences for chlorophyll fluorescence (Fig. 2). However, plants treated with Ni²⁺ and EBR had decreases in F₀ and F_m, as well as increases in F_v and F_v/F_m, compared to the same treatment without EBR. Plants treated with Ni²⁺ and EBR presented increases in the values of Φ_PSII, q_p and ETR (Table 5) and reductions in NPQ, EXC and ETR/P_N, compared to the same treatment without EBR.

Fig. 2

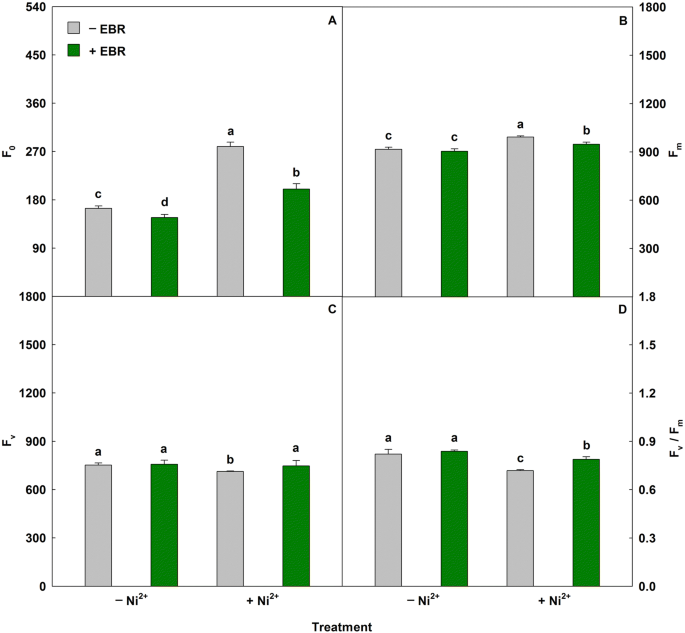

Minimal fluorescence yield of the dark-adapted state (F₀), maximal fluorescence yield of the dark-adapted state (F_m), variable fluorescence (F_v) and maximal quantum yield of PSII photochemistry (F_v/F_m) in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity. Columns with different letters indicate significant differences from the Scott-Knott test (P < 0.05). Columns corresponding to means from five repetitions and standard deviations

Table 6 Stomatal characteristics and leaf anatomy in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity

3.5 Mitigation of the Ni²⁺ effects on gas exchange

Ni²⁺ caused negative repercussions for the gas exchange (Table 5). Spraying EBR on plants suffering from Ni²⁺ toxicity resulted in increases in the values of P_N, E, g_s, WUE and P_N/C_i; however, there was a reduction in C_i, when compared to plants exposed to Ni²⁺ toxicity without EBR.

3.6 Steroid improved density and functionality of stomatal in plants suffering from Ni toxicity

The Ni²⁺ induced negative effects on stomatal characteristics (Table 6). On the adaxial side, plants exposed to Ni²⁺ and EBR had increases in SD, SF and SI and reductions in PDS and 11% EDS. In the abaxial face, the EBR increased SD, SF and SI variables, and reduced the PDS and EDS, when compared to the same treatment without EBR.

3.7 Negative impacts on leaf anatomy were mitigated in plants sprayed with EBR

Plants exposed to Ni²⁺ had reductions on leaf anatomical variables (Fig. 3). However, plants treated with the combined effects of Ni²⁺ and EBR showed increases in the values of ETAd, ETAb, PPT and SPT (Table 6), and a reduction in the PPT/SPT, when compared to the same treatments without EBR. Plants not treated with Ni²⁺ and sprayed with EBR also had increases in ETAd, ETAb, PPT and SPT, and a reduction in PPT/SPT, if compared to the control treatment of 0 μM Ni²⁺ and 0 nM EBR.

Fig. 3

Leaf cross sections in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity. − Ni²⁺/− EBR (A), − Ni²⁺/+ EBR (B), + Ni²⁺/− EBR (C) and + Ni²⁺/+ EBR (D). Legends: EAd = adaxial epidermis; EAb = Adaxial epidermis; PP = Palisade parenchyma; SP = Spongy parenchyma. Bars: 200 μm

3.8 Beneficial actions of EBR on the antioxidant system

The Ni²⁺ concentration in the solution applied to plants provoked increases in the activities of the antioxidant enzymes (Fig. 4). Plants responding to the combined effects of Ni²⁺ and EBR showed increases in SOD, CAT, APX and POX, compared to the same treatment without EBR.

Fig. 4

Activities of superoxide dismutase (SOD), catalase (CAT), ascorbate peroxidase (APX) and peroxidase (POX) in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity. Columns with different letters indicate significant differences from the Scott-Knott test (P < 0.05). Columns corresponding to means from five repetitions and standard deviations

3.9 EBR reduced the oxidative stress induced by Ni toxicity

Plants exposed to Ni²⁺ toxicity showed negative effects on oxidant compounds (Fig. 5). Plants exposed to Ni²⁺ and sprayed with EBR had reductions in the values of O₂⁻, H₂O₂ and EL, compared to the same treatment without EBR.

Fig. 5

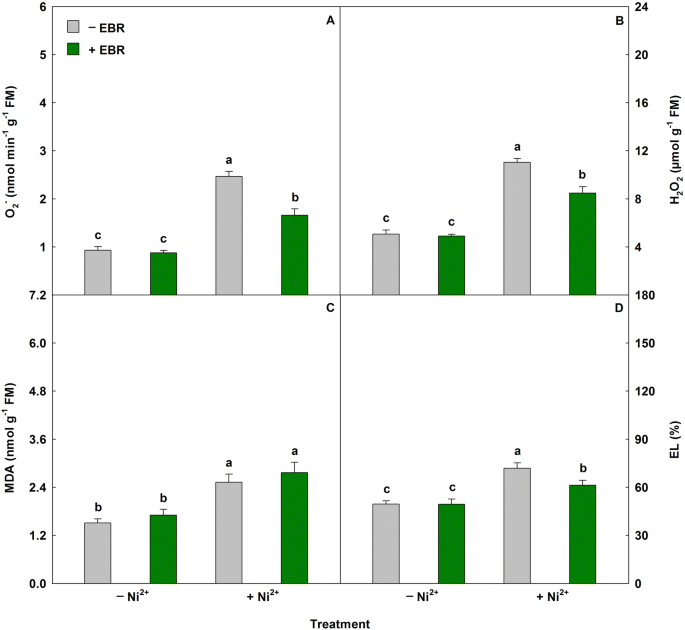

Superoxide (O₂⁻), hydrogen peroxide (H₂O₂), malondialdehyde (MDA) and electrolyte leakage (EL) in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity. Columns with different letters indicate significant differences from the Scott-Knott test (P < 0.05). Columns corresponding to means from five repetitions and standard deviations

3.10 Mitigation of the toxic effects of Ni²⁺ promoted by EBR on biomass

The stress caused by the Ni²⁺ toxicity resulted in significant decreases in variables related to growth (Fig. 6). Spraying plants suffering from Ni²⁺ toxicity with EBR promoted increases in the values of LDM, RDM, SDM and TDM, compared to the same treatment without EBR.

Fig. 6

Leaf dry matter (LDM), root dry matter (RDM), stem dry matter (SDM) and total dry matter (TDM) in young Eucalyptus urophylla plants sprayed with EBR and exposed to Ni toxicity. Columns with different letters indicate significant differences from the Scott-Knott test (P < 0.05). Columns corresponding to means from five repetitions and standard deviations

4 Discussion

The increases observed in Ni²⁺ contents in the root, stem and leaf of young Eucalyptus urophylla plants confirm the absorption and accumulation of Ni in tissues of treated plants. On the other hand, plants exposed to EBR presented reductions in Ni²⁺, in relation to equal treatment without steroid, being verified reductions more intense in leaf tissue. Ni²⁺ in high concentrations can inhibit ZIP/NRAMP transporters linked to uptake of other elements vital to the physiological processes, mainly with Ca, Mg, Fe and Zn (Mizuno et al. 2005; Ahmad et al. 2007; Deng et al. 2016). Sharma et al. (2011) described the positive effects of EBR on Raphanus sativus seedlings cultivated under Ni²⁺ stress, being detected as improvements linked to root length and a higher efficiency of the antioxidant system in the shoot. Sellami et al. (2012) investigating the effect of Ni²⁺ hyperaccumulation on the physiological characteristics of Alyssum murale when cultivated in soil mixed with sewage sludge observed significant increases of Ni²⁺ in the tissues of roots, stems and leaves. Similar to behaviour found in our study, Bazihizina et al. (2015) evaluating Psidium guajava plants subjected to high Ni concentrations (300, 1000 and 3000 μM) verified significant increases of Ni²⁺ contents in the roots and interferences on root membrane functionality, including withdrawal of plasma membrane from the cell walls and disintegration of cytoplasm.

Plants exposed to toxicity by Ni²⁺ showed reductions in root anatomy; however, the EBR spray positively modulated these characteristics, being verified in RET, RDT, RCD, VCD and RMD. The increases in RET, RDT and RCD suggest that EBR mitigated the Ni²⁺ toxicity by stimulating the growth dynamics of the root meristem through the processes of cell division and expansion in the tissues of the epidermis, endoderm and cortex (Hacham et al. 2011). The increase promoted in the values of VCD and RMD indicate that the EBR improved the uptake of water and nutrients inside the plant due to the greater permeability of the membranes (Ortega et al. 2006). Atabayeva et al. (2016) investigating the effects of Cu²⁺ toxicity on the leaves and roots of five varieties of Triticum aestivum reported that a concentration of 0.5 mM CuSO₄ caused reductions in RDT and VCD in all of the genotypes evaluated. Gowayed and Almaghrabi (2013) studying the metal effects on germination and anatomy of Zea mays seedlings reported reductions in RCT and RMD of 19% and 31%, respectively.

EBR clearly reduced the Ni²⁺ uptake; increased the Ca²⁺/Ni²⁺ and Mn²⁺/Ni²⁺ ratios and maximized the P, Ca, S, B, Mn and Mo contents; the effects were more notable in the leaf and root tissues. These results can be explained by the EBR action linked to ionic homeostasis, resulting in a higher tolerance of E. urophylla plants to Ni toxicity. The increase in Ca content is indicative of improvements in membrane integrity, affecting root elongation (Ribeiro et al. 2013; Cristancho et al. 2014). Additionally, Mn is a component of enzymes involved in essential processes in plant metabolism, such as respiration and photosynthesis, and is required during water molecule breakdown in PSII (Aravind and Prasad 2004; Bityutskii et al. 2014). High Ni²⁺ concentrations inhibit H-ATPase activity as well as affect cell membrane permeability, modifying the ionic balance in the cytoplasm and decreasing nutrient uptake and homeostasis (Sharma and Dhiman 2013; Sreekanth et al. 2013). Matraszek et al. (2016) studying the bioaccumulation of nutrients in Triticum aestivum plants submitted to 0.08 mM Ni reported significant reductions in the contents of P, Ca and S measured in the shoot. Rehman et al. (2016) detected reductions in Mn content in the roots of Zea mays under Ni²⁺ toxicity for 60 days. Maksimović et al. (2007) studying the effect of Cd and Ni on Zea mays seedlings detected that Ni²⁺ toxicity induced reductions in Ca and Mn levels in the roots by 15% and 82%, respectively, when compared to the control treatment.

Foliar spray with EBR promoted increases in photosynthetic pigments (Chl a, Chl b, Total Chl and Car), suggesting improvements in Φ_PSII and consequent reactivation of electron transport, as well as chloroplast repair. The chloroplast repair was due to the decrease of ROS, as confirmed by the decrease of O₂⁻ and H₂O₂, which are responsible for the oxidative damage (Sharma et al. 2012; Demidchik 2015). In relation to electron transport, the Chl a, Chl b and Car molecules are responsible for the photochemistry, absorption and transfer of solar energy to the thylakoid membranes. Thus, changes in these pigments also influence the electron transport, which in this study was detected by increases in ETR. EBR also alleviated the deficiency of Mg ions in the porphyrin ring of chlorophyll pigments, increasing the chlorophyll content (Sirhindi et al. 2016). Dubey and Pandey (2011) found that Ni²⁺ toxicity in Vigna mungo plants caused significant reductions in photosynthetic pigments. Gajewska and Skłodowska (2007) also found a decrease in chlorophyll content in Triticum aestivum plants subjected to 100 μM Ni²⁺.

EBR attenuated the toxic effects of Ni²⁺ on F₀, F_v and F_v/F_m, as confirmed by the decrease in F₀ and the increases in F_v and F_v/F_m. Significant decrease in F₀ of plants exposed to EBR and Ni is an interesting result, because F₀ represents the number of closed reaction centres or unable to receive light, resulting in an improvement in photon capture efficiency with intrinsic repercussions on F_v and F_v/F_m (Maxwell and Johnson 2000; Baker 2008). This steroid also reduced the photoinhibition intensity, avoiding damages on reaction centres and increased and transfer capacity of the excitation energy from the antenna to the PSII (Hayat et al. 2010; Qin et al. 2016). On the other hand, Ni²⁺ is potentially toxic to the photosynthetic apparatus, causing disorganization of the chloroplast ultrastructure, as well as deformation and decreases in the number of grana and thylakoids (Seregin and Kozhevnikova 2006). Drążkiewicz and Baszyński (2010) revealed reductions of 63% in F_v of Zea mays seedlings exposed to 200 μM Ni²⁺ for 13 days. Yusuf et al. (2014), evaluating the EBR effects on the antioxidant system and nitrogen metabolism in two contrasting cultivars of Vigna radiata under different levels of Ni²⁺, reported increases in F_v/F_m of the T-44 cultivar submitted to Ni²⁺ and EBR.

EBR spray promoted increases in Φ_PSII, q_P and ETR values in plants subjected to Ni²⁺ toxicity, and these results were related to the beneficial effects promoted in F₀ and F_v mentioned previously in this study. EBR resulted in an increase in the photon capture efficiency, promoting greater energy absorption and electron transport through the photosystems (Dallagnol et al. 2015; Kumari et al. 2017), inducing increases in the efficiency of plastoquinones (Chen et al. 2005) and the cytochrome b₆/f complex (Cyt-b₆/f) that are responsible for the transfer of electrons from PSII to PSI (Buonasera et al. 2011). Pietrini et al. (2015) detected progressive reductions in Φ_PSII and q_P values while investigating Amaranthus paniculatus plants exposed to progressive concentrations of NiCl₂. Santos et al. (2018) evaluated the chlorophyll fluorescence, gas exchange and pigments in Vigna unguiculata plants pretreated with EBR and exposed to heavy metal (Cd) and found increases of 55% in the ETR of plants exposed to EBR and metal toxicity.

Eucalyptus urophylla plants exposed to Ni²⁺ + EBR showed reductions in NPQ, EXC and ETR/P_N, suggesting a better use of the electrons for photochemical activity, because the EBR effects reduced the thermal dissipation caused by excessive excitation in the antenna complex of PSII, consequently decreasing the photoinhibition (Ghassemi-Golezani and Lotfi 2015). Decreases in ETR/P_N indicate that EBR minimized the alternative drains of electrons, thus minimizing Mehler’s reactions (Silva et al. 2012; Jesus et al. 2017). Li et al. (2015) studied the effects of cadmium stress on chlorophyll fluorescence and photosynthesis and observed increases of 73% for NPQ in Elsholtzia argyi plants exposed to 100 μmol L⁻¹ Cd, corroborating the results of this study.

EBR application promoted increases in P_N, E, g_s, WUE and P_N/C_i values, mitigating the effects induced by Ni²⁺ toxicity. The effect of EBR on P_N may be associated with better stomatal performance, as confirmed by the increase in g_s, SD, SF and SI values. The higher values of WUE after treatment with EBR may be related to the increase in P_N values, indicating a balance between P_N and water absorption in the studied plants (Kočová et al. 2010; Bhalerao et al. 2015). Ali et al. (2008) evaluated Brassica juncea plants grown in the presence of NaCl and/or NiCl₂ and sprayed with 1 μM of EBR detected increases in P_N, g_s and WUE after EBR treatment. Khaliq et al. (2015) cultivated Gossypium hirsutum seedlings under hydroponic conditions for 12 weeks with three Ni levels (0, 50 and 100 μM) combined with the presence or absence of 1 mM Si and observed that Ni significantly decreased several photosynthetic parameters, such as E.

The increase found in P_N/C_i and the simultaneous reduction of C_i can be explained by the EBR interference with the RuBisCO enzyme activity, which is mainly responsible for catalysing the photosynthetic reaction of fixation and reduction of CO₂ during photosynthesis (Andersson and Backlund 2008; Parry et al. 2013; Erb and Zarzycki 2018). Santos et al. (2018) verified the effects of three EBR concentrations (0, 50 and 100 nM) on gas exchange and stress oxidation of Vigna unguiculata plants subjected to Cd toxicity and found decreases of 8% in plants sprayed with 100 nM in comparison with equal treatment without EBR. Maia et al. (2018) evaluated the effects of EBR (100 nM EBR) in two Solanum lycopersicum genotypes and described increases of 37% and 48% in P_N/C_i of the BR-efficient and BR-deficient genotypes, respectively.

Positive effects on SD, SF and SI were detected in plants treated with EBR, emphasizing the beneficial action of this steroid on stomatal performance, which can be corroborated by the increases of g_s and E previously reported in this study. The increases in SD and SI were accompanied by a decrease in the size of the guard cells (Hetherington and Woodward 2003; Galmés et al. 2007) and increased CO₂ uptake, which is a limiting factor for photosynthesis (Zhou and Han 2005). In relation to SF, the increases of these values suggest that EBR favoured a greater WUE, which is supported by the increase in WUE and decreases in PDS and EDS. The decreases found in PDS and EDS suggest an elliptic form of stomata, which, to maintain functionality, is continuously adjusting to the environmental and intracellular conditions (Lawson and Blatt 2014). Adamski et al. (2012) evaluated Fe excess at concentrations of 0.45, 0.9, 4.5, and 9.0 mmol L⁻¹ in Ipomoea batatas and detected increases in PDS and EDS of the stomata on the abaxial face of the leaves at the highest concentrations of Fe (4.5 and 9.0 mmol L⁻¹). Sagardoy et al. (2010) investigated the effects of Zn toxicity on photosynthesis and respiration in Beta vulgaris plants hydroponically cultivated with 1.2, 100 or 300 μM Zn and detected a decrease in the density and size of the stomata, corroborating the results found in this study.

EBR had positive effects on leaf anatomy (ETAd, ETAb, PPT and SPT). The increases in ETAd and ETAb are related to the benefits promoted by EBR on leaf tissues, more specifically the epidermis and mesophyll, suggesting an efficient strategy to minimize water loss through E, as demonstrated by the increases verified in WUE as previously described in our study. In relation to PPT and SPT, the increases obtained can be corroborated by the increases in P_N and P_N/C_i and SI because the PPT is rich in chloroplasts and is fundamental for the absorption of light during photosynthesis and fixation of CO₂. Additionally, SPT is known to be involved in gas exchange (Sorin et al. 2015). Maruthi Sridhar et al. (2005) observed a reduction in the cell sizes of the palisade parenchyma and epidermis in Brassica juncea leaves exposed to Zn and Cd for 15 and 16 days, respectively, which is in agreement with the results obtained in this study.

Positive effects on SOD, CAT, APX and POX were detected in plants treated with Ni²⁺ + EBR, corroborating the beneficial actions of EBR on the antioxidant system. The results obtained demonstrated that EBR has the ability to regulate the antioxidant system to reduce ROS (Rajewska et al. 2016), which can be supported by the decrease of H₂O₂ and increase of ETR after treatment with EBR. Kanwar et al. (2013) studied the effects of 24-epibrasionlide in Brassica juncea plants at 30 days of age exposed to different Ni levels and found an increase in the activities of antioxidant enzymes. Similarly, Sharma et al. (2011) reported that Raphanus sativus seeds pre-soaked with EBR and cultivated in Petri dishes containing different Ni concentrations (0, 0.5, 1.0 and 1.5 mM) reduced heavy metal toxicity and increased SOD, CAT, APX and POX. Yusuf et al. (2014) also reported that BRs significantly increased CAT, POX and SOD activity in two contrasting Vigna radiata cultivars under different Ni levels after 45 days of growth, which corroborates the results obtained in this study.

Plants sprayed with EBR exhibited reductions in O₂⁻ and H₂O₂ levels, revealing the effects of this steroid on antioxidant enzymes. These results are corroborated by the attenuation of MDA and EL, which are induced by high oxidative stress. During oxidative stress, excess ROS production leads to the exposure of lipids, proteins and nucleic acids to strong oxidants, causing damage that eventually leads to cell death (Rio et al. 2003; Gajewska and Skłodowska 2008). In regard to the O₂⁻ and H₂O₂ reductions, the EBR action stimulated the SOD activity, which led to an increase of H₂O₂ and consequent induction of CAT and APX activities, which act on H₂O₂, reducing the amount of oxidant compounds (Ashraf 2009; Yusuf et al. 2011a). Similar to this study, Soares et al. (2016) evaluating the effects of the exogenous application of EBR on physiological and biochemical responses of Solanum nigrum exposed to Ni toxicity over 28 days observed a decrease of H₂O₂ between plants treated with 24-EBL and 100 μM NiSO₄ of 55% and 10% in shoot and root, respectively.

EBR spray mitigated the toxic effects of Ni²⁺, positively impacted the growth, and induced significant increases in LDM, RDM, SDM and TDM. These increases are intrinsically related to the benefits observed in this study on gas exchange, pigments, root anatomy and nutritional content, as well as reductions in oxidant compounds. Ni²⁺ toxicity reduces plant growth due to disturbances in the photosynthetic apparatus, mainly disorganizing the chloroplast ultrastructure (Seregin and Kozhevnikova 2006; Feng et al. 2010), and through disorders in nutritional balance and decreases in Fe, Ca and K content, elements required in plant metabolism (Sharma and Dhiman 2013; Ali et al. 2015). Iori et al. (2013) evaluated the phytoremediation capacity of Amaranthus paniculatus subjected to progressive concentrations of Ni²⁺ and observed significant reductions in LDM, RDM and SDM when treated with 150 μm of Ni²⁺. Alam et al. (2007) detected partial increases in RDM and SDM in Brassica juncea plants when treated with 50 and 100 μM Ni²⁺ + BRs, both corroborating the results obtained in this study.

In relation to Ni toxicity, this study proved that young Eucalyptus urophylla plants are more tolerant that other species previously evaluated by our research group (data not available), being necessary to use a higher Ni concentration to simulate the toxicity, as well as symptoms were verified only ten days after Ni treatment. Future research using several Eucalyptus species can be interest to determinate possible tolerance levels and phytoremediation potential to each specie.

5 Conclusion

Our research revealed that EBR alleviated Ni toxicity in young Eucalyptus urophylla plants by modulating ionic homeostasis. This steroid clearly modulated the Ni contents and ionic ratios of Mn²⁺/Ni²⁺ in tissues evaluated, being this result crucial to mitigate the Ni effects, because this heavy metal inhibits the absorption of other elements that are essentials to metabolism, including Mn, competing by similar transporters. Plants stressed had positive effects after EBR spray in relation to Φ_PSII and F_v/F_m, being intrinsically linked to increases in Mn content, because this element is a component of enzymes related to the break down water molecules in PSII during water photolysis. Considering the increases detected for antioxidant enzymes, photosynthetic pigments and biomass, these results confirm that EBR reduces oxidative stress, alleviating the deleterious effects induced by Ni toxicity.

Contribution of co-authors

AKSL was the advisor of this research. ATR, VPO and UOBJ conducted the experiment in the greenhouse and performed physiological, biochemical and morphological determinations, while BRSS measured anatomical parameters and BLB performed nutritional determinations.

Data availability statement

The datasets generated during this research are available in the Zenodo repository (Ribeiro et al. 2019) at https://doi.org/10.5281/zenodo.3552032

Fundings

This research had financial supports from Fundação Amazônia de Amparo a Estudos e Pesquisas (FAPESPA/Brazil), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq/Brazil) and Universidade Federal Rural da Amazônia (UFRA/Brazil) to AKSL. On the other hand, ATR and VPO were supported with scholarships from Programa de Educação Tutorial (PET/Brazil).
