Analysis of plotlevel volume increment models developed from machine learning methods applied to an unevenaged mixed forest
Annals of Forest Science volume 78, Article number: 4 (2021)
Abstract
Key message
We modeled 10year net stand volume growth with four machine learning (ML) methods, i.e., artificial neural networks (ANN), support vector machines (SVM), random forests (RF), and nearest neighbor analysis (NN), and with linear regression analysis. Incorporating interactions of multiple variables, the ML methods ANN and SVM predicted nonlinear system behavior and unraveled complex relations with greater accuracy than regression analysis.
Context
Investigating the quantitative and qualitative characteristics of shortterm forest dynamics is essential for testing whether the desired goals in forestecosystem conservation and restoration are achieved. Inventory data from the Jojadeh section of the Farim Forest located in the unevenaged, mixed Hyrcanian Forest were used to model and predict 10year net annual stand volume increment with new machine learning technologies.
Aims
The main objective of this study was to predict net annual stand volume increment as the preeminent factor of forest growth and yield models.
Methods
In the current study, volume increment was modeled from two consecutive inventories in 2003 and 2013 using four machine learning techniques that used physiographic data of the forest as input for model development: (i) artificial neural networks (ANN), (ii) support vector machines (SVM), (iii) random forests (RF), and (iv) nearest neighbor analysis (NN). Results from the various machine learning technologies were compared against results produced with regression analysis.
Results
ANNs and SVMs with a linear kernel function that incorporated fieldmeasurements of terrain slope and aspect as input variables were able to predict plotlevel volume increment with a greater accuracy (94%) than regression analysis (87%).
Conclusion
These results provide compelling evidence for the added utility of machine learning technologies for modeling plotlevel volume increment in the context of forest dynamics and management.
1 Introduction
Hyrcanian unevenaged mixed forests are located on the southern margin of the Caspian Sea and north of Alborz Mountain, where they cover an area of 55,000 km^{2} and are of great importance for maintaining the biodiversity in this part of the world (Sagheb Talebi et al. 2014). Forestry that intends to maintain this biodiversity must be based on robust predictions of forest volume growth at the stand scale that guide sustainable forest management.
Management decisions influence forest growth and yield (Gardingen et al. 2006) and generally follow the principles of sustainable forest production to ensure that cutting does not exceed the actual forest growth (Sterba 2002). Periodic change in volume is a key estimate of forest productivity, is the foundation of many forest growth and yield models (Sun, 2007; Thakur et al. 2019), and is essential for determining the sustainable allowable cut in unevenaged forest management to ensure the conservation of biological diversity, forest health, and the longterm sustainability of forests (Bayat et al. 2013). A thorough understanding of volume increment enables successful stand projections and the development of appropriate management (harvesting) plans and conservation measures (Miller et al. 2005) based on rational and scientifically sound criteria (Sinha et al. 2017). Typically, methods that most accurately estimate stand volume growth with a minimum number of independent variables enjoy the greatest robustness and utility (Vieira et al. 2018).
Due to the usually high costs associated with timeconsuming fieldwork required for data collection and the remoteness of some forest areas, indirect methods for quantifying growth and productivity of forests are quite appealing (Leak 2011). Examples of some of these indirect methods are regression models, machine learning technologies, and the use of environmental, climatic, and topographic constraints for quantifying growth (Davis et al. 2001; Bourque and Bayat 2015; Bourque et al. 2019). Indeed, the use of models is a quick, easy, inexpensive, and reliable way of quantifying complex dynamics in ecological state variables (Eskelson et al. 2009; Breidenbach et al. 2010; Yu et al. 2010). Machine learning technologies that employ a set of statistical and modeling approaches have recently proven their utility for identifying latent patterns and relationships in databases. Organizations that can collect and maintain a wide range of information at low costs can spearhead the use of machine learning technologies to bring significant valueadded services and products to the organization (Hilbert and Ostendorf 2001, Ingram et al. 2005). Approaches available for machine learning are diverse and a few of these hold promise for applications in forestry are described below.
Different growth and yield modeling approaches have been pursued for predicting forest dynamics. Whereas processbased models incorporate fundamental cause and effect relationships that control tree growth and can therefore simulate growth processes even when growing conditions vary over time, such models are rarely used in management because of their high level of complexity and intensive data requirement (Ashraf et al. 2012). In contrast, empirical growth and yield models, which may be potentially biased when the environment or the management regime changes rapidly, remain popular with government departments and forest companies that estimate yield as a function of current tree dimensions, stand density, and site quality (Ashraf et al. 2012). While empirical models have traditionally been developed using regression techniques, including mixed regression models, artificial neural networks (ANNs) may constitute an alternative approach to develop more robust models than traditional regression approaches.
ANNs form a subset of artificial intelligence (AI) that are used for a wide range of problemsolving tasks, including in communication memory, optimization, prediction, diagnosis, and control (Reis et al. 2016; Vieira et al. 2018; Bayat et al. 2020). The structure and function of ANNs mimic the neurons in the human brain and consist of a few simple structural components with complex connections (Strobl and Forte 2007). In forestry, ANNs are often used to solve complex multivariate problems (Maier and
Support vector machines (SVMs) are considered the most powerful and accurate in their ability to solve problems. This method is based on classification and regression theory of statistical learning developed by Vapnik et al. (1963, 1964). In general, SVMs focus on the boundary between classes. Input space created by independent variables is covered by linear or nonlinear transformations that are based on core functions, including lower and higherorder polynomials, radial base (RBF), and sigmoidal functions. The SVM algorithm tries to find a throw page (i.e., splitter superpage with the maximum distance from the margin points) that can accurately predict the distribution of data (Wang et al. 2009). The support vector machine has been used in many studies such as in the estimation of forest structure (Lee et al. 2018) and estimation of forest characteristics (Shataee et al. 2012).
Random forest (RF) is a nonparametric method developed as an extension of the classification and regression trees method (i.e., CART; Breiman 2001). This method can be used for a variety of regression problems and prediction of forestdependent variables (Watts and Lawrence 2008; Walton 2008; Eskelson et al. 2009; Breidenbach et al. 2010; Yu et al. 2010). Another popular classification technique in forestry applications (e.g., Holmstrom and Fransson 2003) is based on nearest neighbor (NN) analysis, which generates and applies classification rules through training samples, without requiring additional information.
The main objective of this study was to predict net annual stand volume increment as the preeminent factor of forest growth and yield models. Taking advantage of the capabilities of modern machine learning techniques, we estimated net annual stand volume increment using the machine learning techniques of ANN, SVM, RF, and NN and compared these estimates with those derived from the traditional estimation and modeling approaches.
2 Materials and methods
2.1 Study area
The study was done in the Jojadeh section of the Farim Forest that is located in the Mazandaran province in the southern part of Sari City on the slopes of the northern Alborz Mountains (Dodangeh district) (Fig. 1). The section covers about 3550 ha with elevations that range from 782 to 1750 m above mean sea level (AMSL). The regional climate is classified as humid based on the Ivanov method (Hamidi et al. 2019). Favorable climatic conditions coincide with the passage of Mediterranean airmasses from the west and Siberia and the Caspian Sea from the north that provide an annual rainfall of about 833 mm and an average annual temperature of about 11.2 °C. The close to nature forest management process implemented in northern Iran is a combination of the single tree and group selection systems in which about 2.5% of the standing volume is removed per year, which has led to the development of a typical heterogeneous, unevenaged, mixed forest within the study area. The study area was comprised of the following tree species that were shade tolerant to intermediately shadetolerant and comprised the vast majority of the standing volume: Oriental beech (Fagus orientalis Lipsky, 60%), European hornbeam (Carpinus betulus L. 15%), Caucasian alder (Alnus subcordata C.A. Mey., 11%), and Velvet maple (Acer velutinum Boiss., 7%) (Hamidi et al. 2016).
2.2 Study methods
In 2003, 313 circular inventory plots (0.1 ha, each) were systematically laid out on an inventory grid (200 m × 150 m). Due to steep northfacing slopes, the directions of the grid axes were set northtosouth and easttowest, allowing the surveyors to walk along the contours of the land. Slope corrections were applied to plot radii measured along the soil surface to obtain horizontal plot areas of precisely 0.1 ha. Plot centers were monumented with a pole during the first measurement period. All trees were numbered with paint for identification at later inventories, and the position of the DBH was permanently marked on each tree.
In each plot, the diameter at breast height (DBH) of all trees with a DBH > 12.5 cm was measured with calipers in 2003 and 2013 and it was recorded whether each tree was alive or dead. New ingrowth trees were added in 2013 if they passed the 12.5 cm minimum DBH threshold. Physiographic factors, including slope, aspect, and elevation, were fieldverified and recorded for each plot.
After data entry, basal areas and volumes in 2003 and 2013 were computed for each tree, summed to the plot level, and extrapolated to the hectare level. For each plot, volumes of live and dead trees as well as harvested volumes were computed. In addition, the square of the basal area of 2003 was computed, and slope, aspect, elevation, temperature, and precipitation data were compiled. Temperature and precipitation data were interpolated from records obtained in the three closest climate stations (Pole Sefid, Alasht and Kiasar), giving the greatest weight to data from the closest station. The 10year net annual volume change or periodic annual volume increment (PAI_{VOL}) between 2003 and 2013 was calculated as
where \({\mathrm{PAI}}_{\mathrm{VOL}}\) is the net annual volume change over 10 years, V_{E} is the volume at the end of the measurement period (2013), V_{H} is the average of volume that was harvested or died across all plots during the same period, and V_{B} is the volume at the beginning of the measurement period (2003).
In this study, stem volumes of a total of 4832 trees for which a diameter was measured were estimated using official tariff (volume) tables that were converted into the following volume functions by species (Bayat et al. 2013):
where v is the stem volume (m^{3}) and DBH is the diameter at breast height (cm).
Once net annual volume change between 2003 and 2013 was computed, the following general estimation workflow of the machine learning and statistical methods that show different inputs, processes, variables, and outputs were pursued (Fig. 2). Following data collection and identification of the dependent and independent variables, the data were analyzed by one statistical method (i.e., least squares regression analysis) and four different machine learning methods. In three of the four machine learning methods, different algorithms were explored to find the best model (a more detailed explanation is given in the following sections).
The potential parameters to the volume increment model (PAI_{VOL}) included a measure of competition (quantified as basal area (BA) and basal area squared (BA^{2}); Vanclay 1994) and several physiographic (aspect (ASP), slope (SLP), elevation (ELE)) and climatic variables (temperature (TEMP), precipitation (PRE)). The stepwise selection (or sequential replacement) procedure was used to select statistically significant independent variables. Regression analysis was used to model the 10year net annual volume increment (PAI_{VOL}) (Lhotka, and Loewenstein, 2011, Heshmatol Vaezin et al. 2008, Schroder et al. 2002) as:
where γ, λ, β, α, φ, ρ, ω, χ, and υ are the model parameters that were estimated with regression analysis.
Four machine learning algorithms (i.e., ANNs, SVMs, RF, and NN) were tested in the current study. The salient features of the various machine learning methods are as follows:

1.
ANNs used in this study consisted of two common architectures, one based on the feedforward multilayer perceptron (MLP) and one on the radial basis function (RBF). The MLP and RBFbased ANNs with backpropagation are the most used in solving difficult engineering problems (Walling et al. 2001; Zhu et al. 2007). The methods provide robust estimates (Reis et al. 2018; Bayat et al. 2019a) and give approximations to all sorts of nonlinear functions (Benali et al. 2019). These ANNs were trained with backpropagation algorithms, using a random subset of 70% of the input–output data records for model training and the rest for testing (Hilbert et al. 2001; Benali et al. 2019). Prior to training, all input and output data were normalized (Nagy et al. 2002; Van Dao et al. 2020). The ANN structure was iteratively altered by changing the number of hidden nodes. The structure that produced the least amount of error (i.e., the difference between modeled and observed values) was selected for testing at a later stage.

2.
SVM is a nonparametric, supervised statistical method that is a binary classifier (Mountrakis et al. 2011). In creating an associated model, the kernel type must be selected, and the number of kernel parameters needs to be determined (Shataee et al. 2012). In this study, four kernel types were examined, including a linear, polynomial, RBFbased, and sigmoidal type (Vafaei et al. 2018). The kernel parameters include capacity (c), gamma (γ), and epsilon (ε). To evaluate the model fits, gamma values were calculated as 1 divided by number of independent variables (Hsu et al. 2010). For selecting the best parameters, capacity, and epsilon rates, a tenfold crossvalidation with 1000 iterations for minimizing the error function (Schölkopf et al. 2000) through a specified grid search method (Hsu et al. 2010) was used. The specified grid search included a range of capacity from 1 to 50, which is equal to the range of input variables (Mattera and Haykin 1999); epsilon rates varied from 0.1 to 0.5. Internally, the SVM calculates the model not with a simple formula but optimizes the model stepwise. The strictness of this optimization is controlled by the capacity and epsilon parameters.

3.
RF is a group of algorithms that use a set of decision trees for classification and prediction (Dietterich 2000). Decision trees represent rules, which can be easily understood and used in knowledge systems such as databases. A decision tree is a hierarchical model for supervised learning whereby local regions are identified in a sequence of recursive splits in a small number of steps. A decision tree is composed of internal decision nodes and terminal leaves. Based on our input data, we created five nodes and used 300 initial trees for training and testing to produce a graph that shows the average squared error rate against each tree. One of the main parameters that must be set is the kpredictor for each node. The simplest way to determine k is to calculate the square root of the total number of independent variables, i.e., k ≤ √n, where n is number of input variables.

4.
The kNN method categorizes a point according to its nearest neighbors. The kgraph of NN is the point on the graph that is connected to its nearest neighbor. The degree of similarity is based on a distance metric based on Euclidean, Euclidean squared, Manhattan, or Chebychev distances calculated for selected attributes. The number of neighbors used depends on the type of data. The number of optimal neighbors is typically between 5 and 10 (e.g., Kutzer 2008; Gu et al. 2006; Reese et al. 2002; Sanquetta et al. 2015) but can be as high as 50 (e.g., Finely et al. 2006).
Among the models with different kernels, the supportFor each model, we first randomly selected 70% of the data for training and 30% for validation/testing (see also Bayat et al. 2019a; Benali et al. 2019). Common criteria for assessing the goodnessoffit of model predictions have historically been the coefficient of determination (R^{2}), the rootmeansquared error (RMSE), the relative RMSE, BIAS, and the relative BIAS (Lumbres et al. 2016). An important advantage of the relative RMSE (in %) is that it enables comparisons among predictions produced by different models (PulidoCalvo et al. 2007).
where est_{i} and obs_{i} are the ith estimate and observation, respectively, and n is the number of observations.
3 Results
3.1 Stand metrics
In general, the mean values of DBH, BA, and volume covered a broad range of conditions and consistently increased between 2003 and 2013 (Table 1).

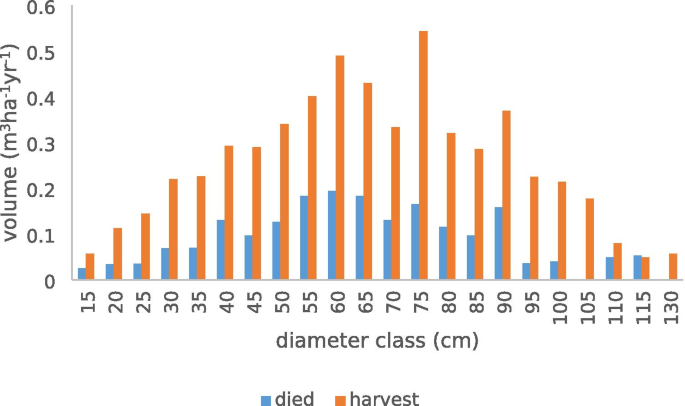

Between 2003 and 2013, an average volume of 5.7 m^{3} ha^{−1} year^{−1} was harvested and 2.0 m^{3} ha^{−1} year^{−1} died across all plots. Figure 3 shows how harvest and natural morality was divided among different tree size classes of trees.
3.2 Regression analysis
Net annual volume increment per hectare was 2.36 m^{3} ha^{−1} year^{−1} (SE = 0.07 m^{3} ha^{−1} year^{−1}) and ranged between 0.15 and 7.58 m^{3} ha^{−1} year^{−1}. Average basal area across the study area was 23.08 m^{2} ha^{−1} (SE = 0.55 m^{2} ha^{−1}) and ranged between 1.18 and 54.05 m^{2} ha^{−1}. There was a mild curvilinear relation between 10year net annual volume increment and basal area that was best captured by the following regression model Eq. (7).
where PAI_{VOL} is the net annual volume increment (m^{3} ha^{−1}) and BA is the basal area (m^{2} ha^{−1}) in 2003.

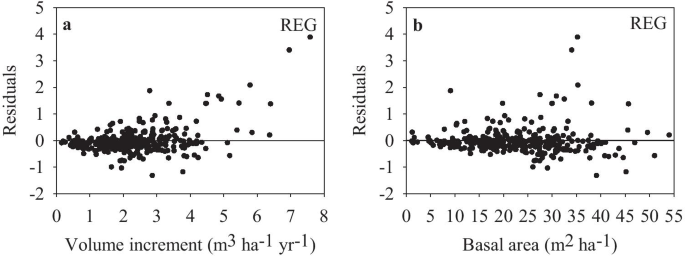

None of the physiographic or climatic variables were statistically significantly related to net annual volume increment. BA (t = 7.18, p < 0.001) and BA^{2} (t = 2.45, p = 0.015) were statistically significant, resulting in an R^{2} of 0.81, a rootmeansquared error of 0.52 m^{3} ha^{−1}, and residual standard error of 0.27 m^{3} ha^{−1}. The relative RMSE was 22.0%. The residuals showed a slight positive bias (underestimate of growth) in plots where volume increment exceeded 4.5 m^{3} ha^{−1} year^{−1} (Fig. 4a). No bias was observed with basal area (Fig. 4b).
3.3 Machine learning methods
3.3.1 Artificial neural network
The neural network structure consisted of a multiinput layer, a hidden multilayer, and an output layer, with a minimum 5 and a maximum 12 layers (Table 2). The independent variables of BA, BA^{2}, slope, aspect, and elevation were input layers, and the dependent variable of net annual volume increment per hectare was the output layer. For each of the MLP and RBFbased ANNs, five models were examined. MLPbased ANNs gave superior results over RBFbased models for both training and evaluation datasets, with R^{2} values of 0.93 for MLP and 0.90 for RBF (Tables 2 and 3), indicating that a strong relation existed between the actual measured standing volume and the predicted volume by the MLP (Fig. 5).
BA and BA^{2} were the most important predictor values for estimating net annual volume increment, followed by precipitation and elevation (Fig. 5).
Similar to the leastsquares analysis, the residuals showed a slight positive bias (underestimate of growth) in plots where volume increment exceeded 4.5 m^{3} ha^{−1} year^{−1} (Fig. 6a). No bias was observed with basal area (Fig. 6b).
3.3.2 Support vector machine
Among the models with different kernels, the support vector machine method with an RBF Gamma kernel produced the smallest RMSE in both the training and evaluation models (Table 4).
The sum of the weight characteristics of each of the variable support vectors are as follows: BA (42.21), BA^{2} (37.12), precipitation (29.34), temperature (25.15), elevation (24.27), slope (20.71), and aspect (12.65). Similar to the previous analyses, the residuals showed a slight positive bias (underestimate of growth) in plots where volume increment exceeded 4.5 m^{3} ha^{−1} year^{−1} (Fig. 7a). No bias was observed with basal area (Fig. 7b).
3.3.3 Random forest
Based on the graph of squared error variation with increasing numbers of trees in the training and validating/testing dataset, the number of optimal trees for modeling net annual volume increment (m^{3} ha^{−1} year^{−1}) was estimated at 250 trees (Fig. 8). To find the optimal number of trees for volume modeling, the error square of the error diagram was evaluated with an increasing number of trees in both for training and testing datasets. The optimal number of trees is the point on the curve when further increases no longer reduce the error square diagram, which was reached at 250 trees. The optimal number of trees in a random forest depends on the number of predictors. If the chosen number of trees is too small, however, then some observations will be predicted only once or even not at all and some features can (theoretically) be missed in all subspaces used, resulting in decreased predictive power of the random forest model. Thus, a greater number of trees chosen typically results in better model outcomes.
Decision trees are powerful and popular tools for classification and prediction. In contrast to neural networks, the attractiveness of decision trees is that they represent clear rules that are easy to interpret. Each box in the tree in Fig. 8 represents a node. A decision tree grows from the top node, called the root node downward and splits the data at each level to form new nodes. The resulting tree comprises many nodes connected by branches. Nodes that are at the end of branches are called leaf nodes and play a special role when the tree is used for prediction. In Fig. 8 each node contains information about the number of instances (N) at that node and about the distribution of the values of the dependent variable. The instances at the root node are all of the observations in the training set (N = 120). Below the root node (parent, comprised by BA) is the first split that, in this case, splits the data into two new nodes (children) based on the predictor balance of current account. The decision tree derived from the random forest classification method has 9 nonterminal children and 10 terminal nodes (Fig. 9) and includes the two most important decision variables of BA (importance = 1.0), BA^{2} (importance = 0.95), slope (0.13), elevation (0.11), precipitation (0.10), temperature (0.09), and aspect (0.08). Also, based on the above results, modeling with seven variables in each node (k = 7) resulted in a minimum of RMSE and was selected as optimal K for estimating the net annual volume increment.

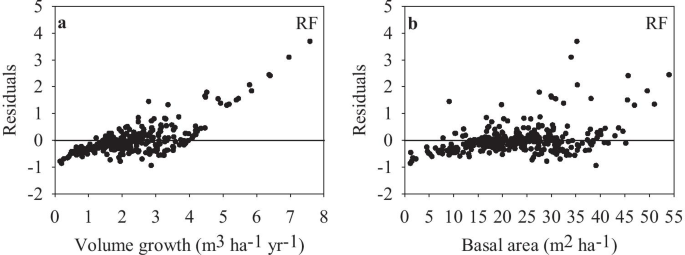

The net annual volume increment model using the Random Forest method had an R^{2} of 0.89, with a RMSE of 0.52 m^{3} ha^{−1}, a BIAS of 0.03 m^{3} ha^{−1}, a relative RMSE of 22.2%, and a relative BIAS of 1.4%. In contrast to the previous methods, the residuals showed a clear bias, overestimating net annual volume increment in plots with low growth rates and underestimate volume increment in plots with growth rates above 4 m^{3} ha^{−1} year^{−1} (Fig. 10a). This bias was less clear but nonetheless present with basal area as well (Fig. 10b).
3.3.4 Nearest neighbor algorithm
The nearest neighbor algorithm weighed with a range of 1 to 20, and each of four distance metrics (i.e., Euclidean, Euclidean squared, Manhattan and Chebychev distances) showed that the Manhattan distance metric with K = 11 neighbors resulted in the least RMSE and bias for both training and evaluation datasets (Table 5). Even with the best model, the relationship between estimated and observed net annual volume increment was modest, resulting in an R^{2} of 0.75.

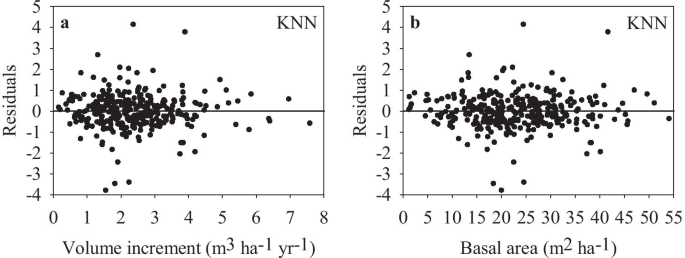

Compared with the previous methods, the residuals showed no bias with either net annual volume growth rates (Fig. 11a) or basal area (Fig. 11b). However, the range of negative residuals is greater than for the previous methods, which were generally less than − 1.5.
A comparison of the fitted models of net annual volume increment (m^{3} ha^{−1} year^{−1}) as a function of basal area (m^{2} ha^{−1}) shows that all of the evaluated models depicted very similar relationships between these two variables. All methods depict a slightly curvilinear relationship between net annual volume increment and basal area, as evidenced by the significance of BA^{2} in each model (Fig. 12). As a consequence, differences in the quality of the model (i.e., coefficient of determination, RMSE, and relative RMSE) outcomes is largely due to each model’s ability to use additional information contained in the physiographic factors to refine the model.
A comparison of the coefficients of determination, RMSEs, and relative RMSEs of the different estimation methods shows that the ANN and SVM methods resulted in the best models, with a slight superiority of the ANN method over the SVM method (Table 6). The models derived from the random forest and the statistical (leastsquares regression) methods resulted in models providing lesser fits, with RMSEs that were 3–4 times larger than the ANN model. The kNNalgorithm resulted in the poorest model fit based on R^{2} and the greatest RMSE value of all methods that were evaluated.
4 Discussion
All modeling methods that predict forest performance, such as regression models and artificial intelligence models, have their own strengths and weaknesses. Although traditional regression models are capable of providing specific formulas, and these may make it easier to understand the relationships between the variables in these models, the many limitations of the regression models include stringent statistical assumptions such as the normal distribution of data, the independence of variables, and equal variances and that, if violated, reduces the quality of empirical models (Weiskittel et al. 2011). Because we did not include, for example, nonlinear regression analysis in this study, our conclusions of the poorer performance of regression analysis compared with some machine learning techniques, is limited to traditional leastsquares linear regression analysis. One of the advantages of artificial intelligence techniques in modeling is that they are not limited by strict statistical assumptions; they are able to incorporate qualitative variables, and produce relatively accurate and precise models (Viera et al. 2018; Janizadeh et al. 2019). Our results clearly demonstrate the capability of some machine learning techniques (artificial neural networks and support vector machine methods) to produce more accurate estimates of plotlevel net annual volume increment in unevenaged, mixed forests and to identify important predictors (e.g., basal area and physiographic factors such as elevation, slope, and aspect) than traditional leastsquares regression. Although not all artificial neural network and machine learning algorithms performed equally well, the superiority of the ANN and SVM methods over the regression, RF, and kNN methods can be attributed to the nature of machine learning that can easily incorporate information of environmental variables into models and extract knowledge directly from data without any predefined assumptions of the phenomenon being investigated to significantly improve the quality of the models (Bayat et al. 2019b). In fact, the independence on initial assumptions about the input data is one of the most important features of ANN, which means that input data can assume any statistical distribution (Civco et al. 1994). This enables the use of machine learning methods for solving various problems in natural resources management and based on the results of this study, makes them an effective tool for modeling volume changes in forest growth models.
The challenge when using artificial neural networks models, however, is to find the number of hidden layers and the proper transfer functions that result in the least error between the predicted and the actual parameter. Although there is no general rule for selecting the number of hidden layer neurons yet, some researchers have suggested that this number should be equal to one more than twice the number of input neurons (input variables) (Zhu et al. 2018), even though the number of neurons obtained from this expression does not necessarily guarantee the best results or generalization of network results. Because the number of hidden layer neurons depends on the dataset and on the number and quality of training patterns, the analysis is repeated with different numbers of hidden layers until evaluation criteria indicate the number of hidden layers that resulted in the best model fit. In this study, the trial and error procedure showed that 11 hidden layers resulted in the best performance of the two ANN algorithms that produced a robust model with our input variables that evaluated the influence of basal area and physiographic factors on net annual volume increment. For both ANN models that were tested (i.e., the MLPbased ANN and the RBFbased ANN), using more than 11 neurons in the hidden layer did not significantly improve model accuracy. This number is similar than those of a multilayer feed forward neural network that achieved the lowest RMSEs for predicting tree height and volume of Chinese fir with four and seven nodes, respectively (Huang et al. 2014). In this study, the ANN based on the multilayer perceptron network (MLP) provided a better fit to the data than the RBFbased ANN and explained 92% of the variability in the data. In both cases, BA and BA^{2} were the most influential variables whose effects were further modified by physiographic and microclimatic factors in the form of elevation, slope, and aspect. Similar to results in other studies (Toth et al. 2008, Foody et al. 2003), artificial neural network models in this study outperformed regression analysis and resulted in much smaller model RMSEs. We thus conclude that the artificial neural network model can increase the accuracy of estimation prediction and is thus a good alternative to conventional regression models for estimating volume increment, particularly when nonlinear relationships are expected between the independent variables and the dependent variables.
The RBFgamma SVM algorithm was superior to the linear, polynomial, and sigmoid alternatives for modeling net annual volume increment in this study. Although the model explained 92% of the variation in the evaluation dataset, the mean squared error was slightly greater than that of the ANN method. The nearly identical performances of SVM and ANN in this study are not unusual and have been noted when accuracies of classifications using SVM and ANN were compared (Dixon and Candade 2008). Comparing classification based on support vector machine with maximum likelihood classification, neural network, and decision tree, Huang et al. (2002) also noted that the accuracy of the support vector machine was superior to the other methods and considered the reason for this the finding an optimal decisionmaking boundary.
The net annual volume increment model based on the RF algorithm in this study that explained about 89% of the variation in the data placed the greatest importance on plot basal area, followed by precipitation and elevation. Consistent with ANN and SVMbased results, the inclusion of topographic data as auxiliary data was able to improve the model. Similar results were obtained for modeling volume and basal area in the Darabkola forest of Sari, Iran, when plotbased estimates were complemented with spectral data from the Pleiades satellite and topographic auxiliary data (Zahriban et al. 2015). Using the nonparametric RF algorithm that included both spectral and auxiliary data resulted in a 5% reduction of RMSE compared with the use of spectral data only for volume modeling and a reduction between 1 and 3% for basal area modeling (Zahriban et al. 2015). Despite this improvement of the model when incorporating topographic data, our results do contrast with those of Shataee et al. (2012), who found that the random forest algorithm had a superior performance compared with other machine learning methods.
Modeling net annual volume increment using the nearest neighbor algorithm based on the Manhattan distance measure explained only 84% of the variation in the data with greater bias than ANN and SVM models. McRoberts (2012) estimated forest attribute parameters for small areas using nearest neighbor techniques and obtained a root mean squared error of 64.73 with 25 optimum k, which was a greater error rate than in the present study.
The much greater relative RMSE produced by the kNN method compared with SVM and RF methods in this study is in contrast to a study by Shattaee et al. (2012) who investigated stand volumes derived from ASTER sensor data using kNN, SVM, and RF methods and found a lower relative RMSE (28.4%) for the kNN method that was similar to those of the SVM (25.9%) and RF (26.9%) methods. However, one of the problems associated with the kNN algorithm is that all features of the neighbors have a similar effect on the distance of a new record to its neighbors, which can mislead the classification process and reduce the accuracy of the algorithm (Thanh and Kappas 2018).
In this study, all methods consistently indicated a curvilinear relationship of net annual volume increment with basal area, with maximum volume increment occurring at the greatest basal areas. This is not surprising, because the magnitude of growth is largely a function of the size of the growing stock. Owing to the shadetolerance of the attending species, even the net annual volume increment of trees < 24 cm DBH was not significantly negatively affected by high basal areas (p > 0.79) in this study. However, we did not evaluate, and thus, we cannot exclude, potentially adverse effects of high basal areas on the regeneration. It is important to remember that this analysis investigated net annual volume increment as a function of the range of basal areas within and not among stands. Because unevenaged beech forests are not primarily managed for maximum volume increment rates but to also ensure sufficient regeneration and upgrowth of trees through the diameter distribution to sustain the unevenaged system, it is clear that average standlevel basal areas and volumes are kept much below those that maximize net annual volume increment over a single decade. The average standlevel basal area in this study that ranged between 23.1 and 25.1 m^{2} ha^{−1} and average volumes that ranged between 227 and 250 m^{3} ha^{−1} in 2003 and 2013 were lower than the recommended ranges of 26–26 m^{2} ha^{−1} or 300–350 m^{3} ha^{−1}, respectively, that ensure both structure and sustainable volume increment in Oriental beech forests in Iran (Eslami 2017). An average observed net annual volume increment of 2.3 m^{3} ha^{−1} year^{−1} plus a harvest level 5.7 m^{3} ha^{−1} year^{−1} and a mortality of 2 m^{3} ha^{−1} year^{−1} indicate that this unevenaged forest may provide a sustainable yield of 6 m^{3} ha^{−1} year^{−1} (i.e., net growth plus harvest minus mortality) when managed at current basal area and volume levels. Because the average basal area is quite a bit lower than the 36.8 m^{2} ha^{−1}, and the increment is much higher than the 4 m^{3} ha^{−1} year^{−1} of sustainable yield reported for unevenaged managed forests in the region (Bayat et al. 2013), there are two general management options for this forest. First, maintain current harvest levels and gradually build up volume stocks to the recommended 300–350 m^{3} ha^{−1} or increase harvest levels to sustain current levels of volume stocks. To facilitate that decision, future research needs to relate regeneration dynamics to various levels of basal areas and volume stocks in this study region.
5 Conclusion
With the advent of machine learning methods, the precision of solving complex problems in many fields has increased in recent years. These methods have proven to be more effective in activities that use mathematical models such as regression. Machine learning methods have been widely used to estimate forest inventory parameters. In this study, four machine learning algorithms as well as statistical analysis were used to model forest volume increment in a Hyrcanian unevenaged mixed forest. Similar to results by some researchers who compared machine learning results to allometric models to predict forest characteristics, we found that some machine learning methods, especially artificial neural network and support vector machine were superior and more accurate than other machine learning methods as well as traditional leastsquares regression. The ability to accurately predict wood volume provides the basis for the sustainable management of forests as well as a more accurate forecast of the allowable cut that can be extracted from forests. This is particularly important in unevenaged forest management, where accurate forecasts of the net volume growth are needed to maintain the species composition and structures that characterize these forests. In this study, we have shown that some machine learning methods may provide a more detailed picture of the distribution of net volume growth than can be achieved with linear regression analysis.
Data availability
Data not available / Data will be made available on request.
